DESCRIPTION

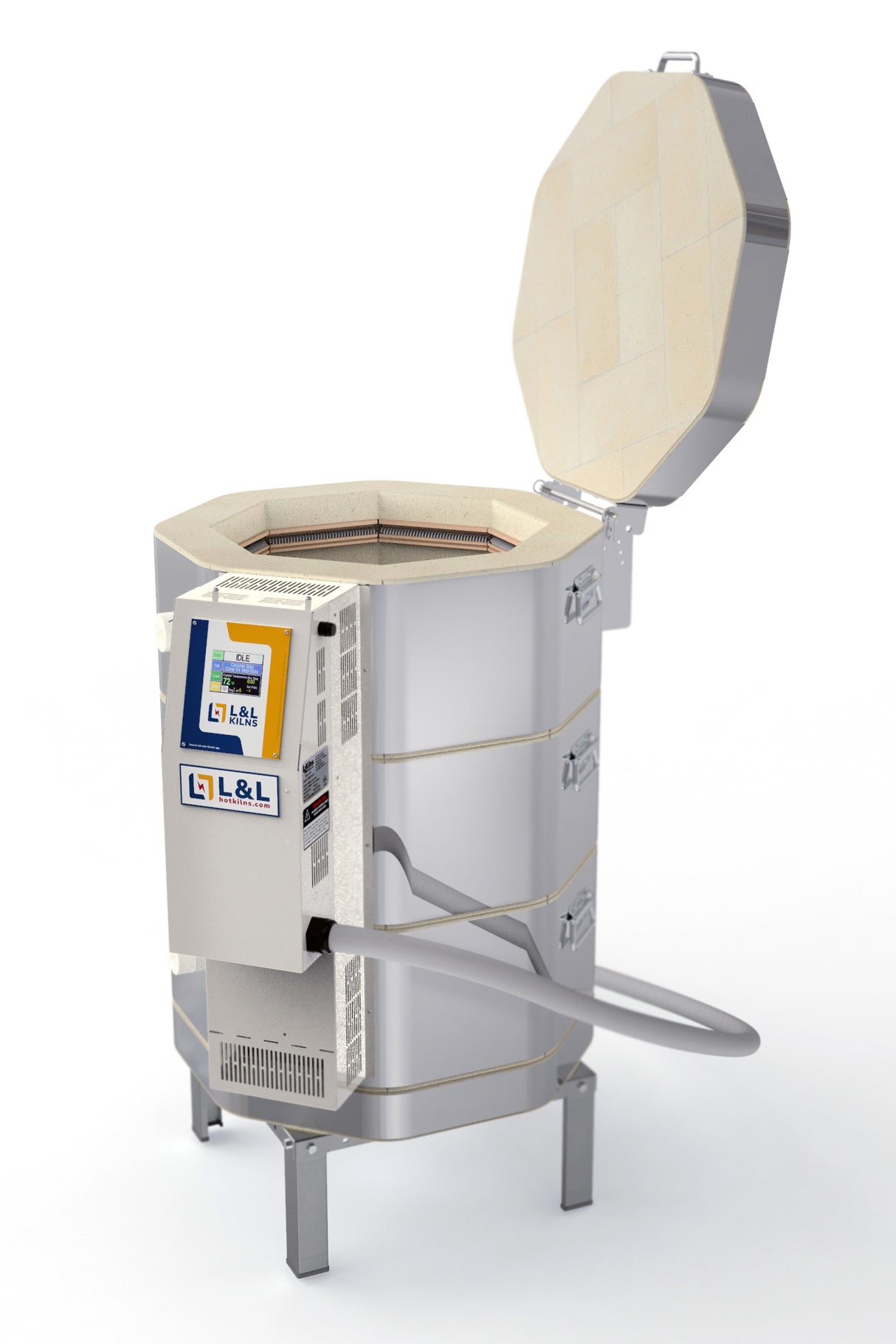

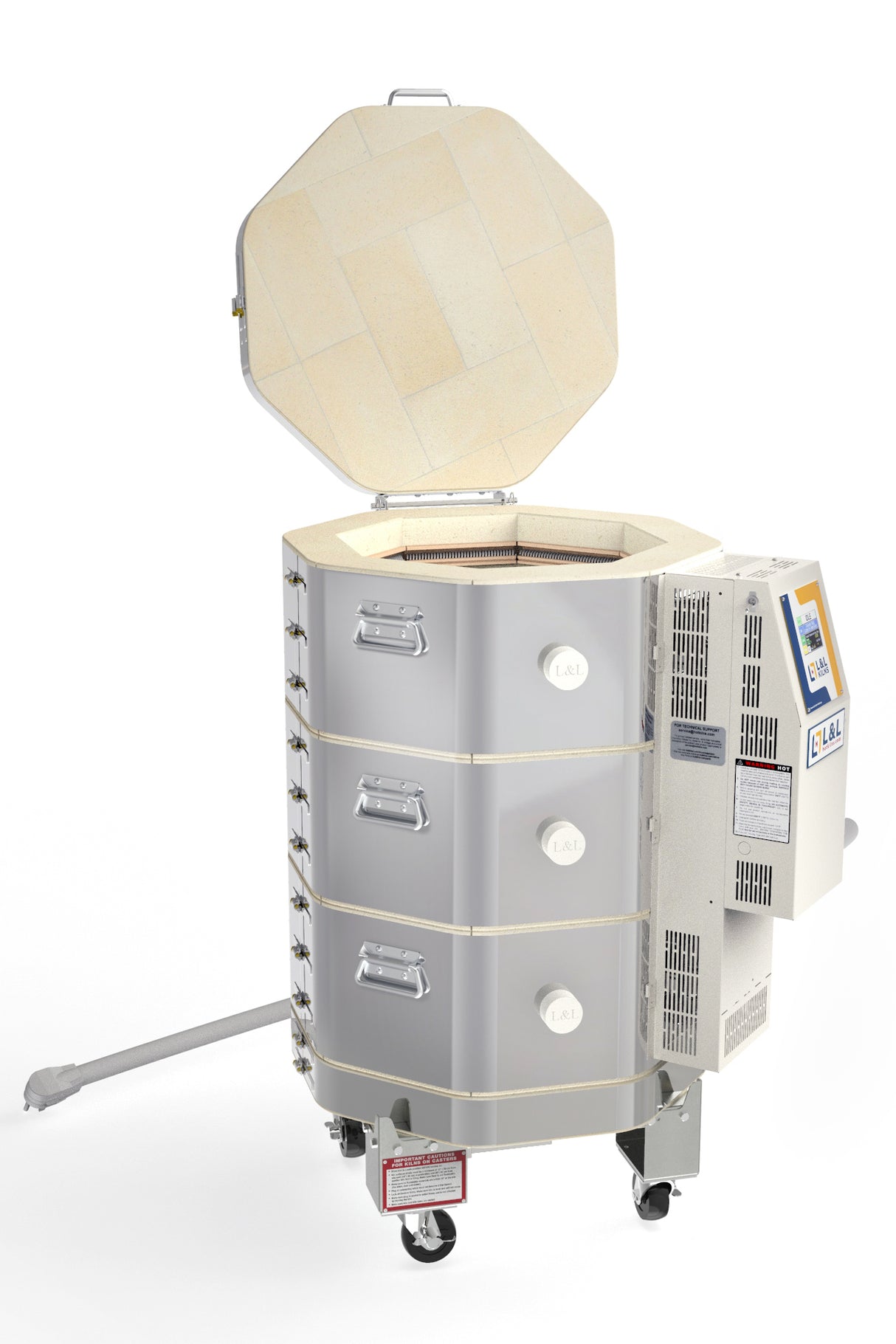

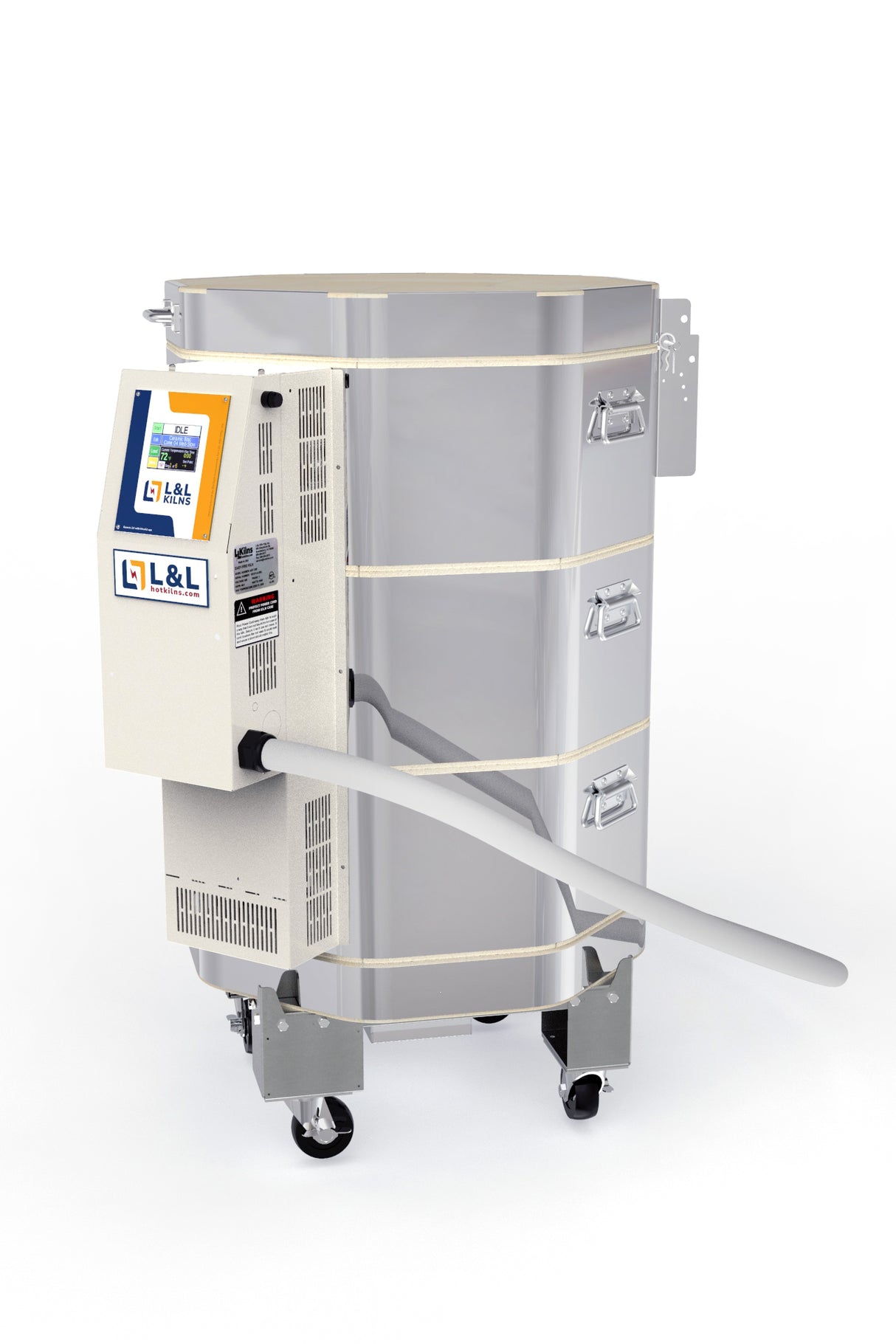

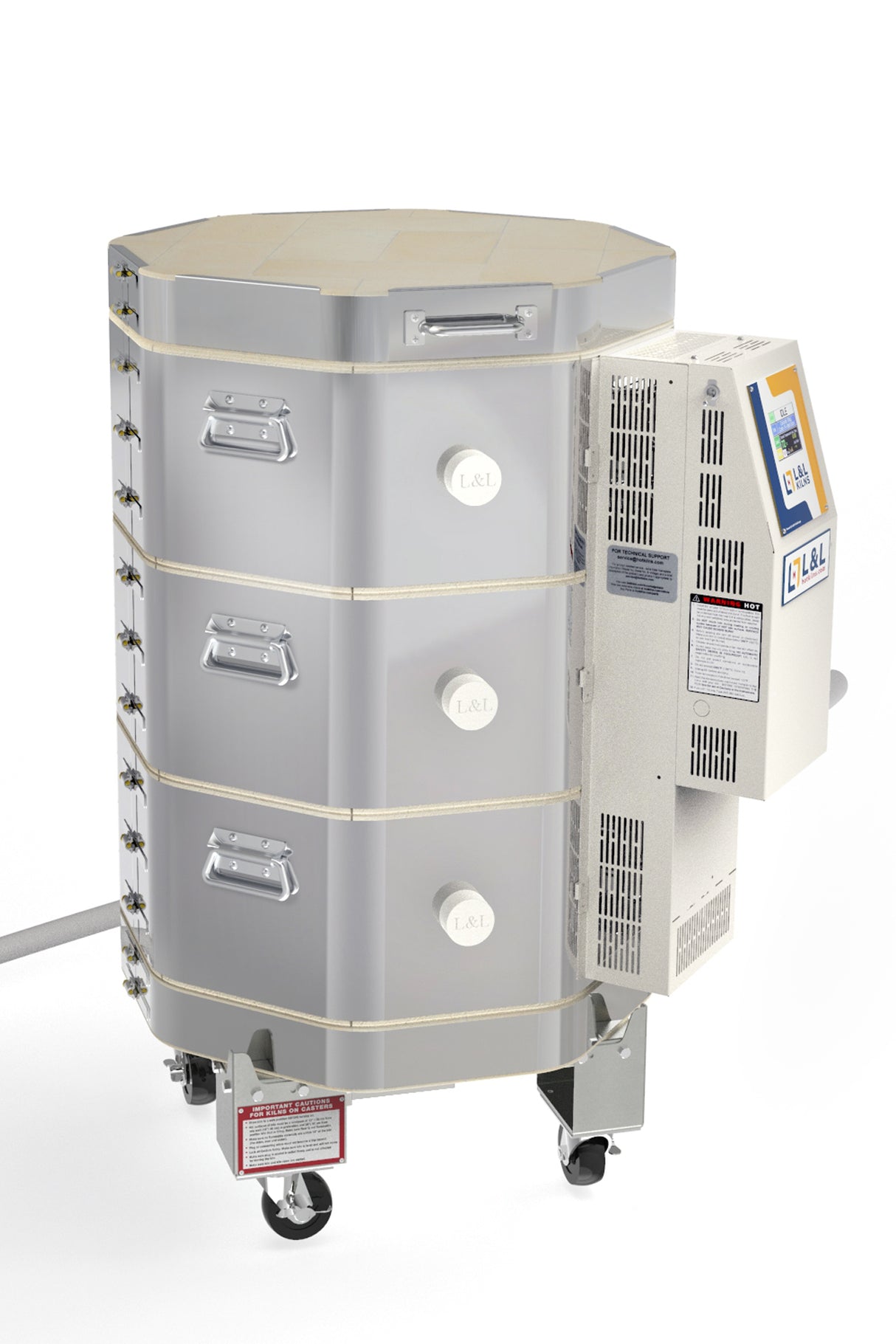

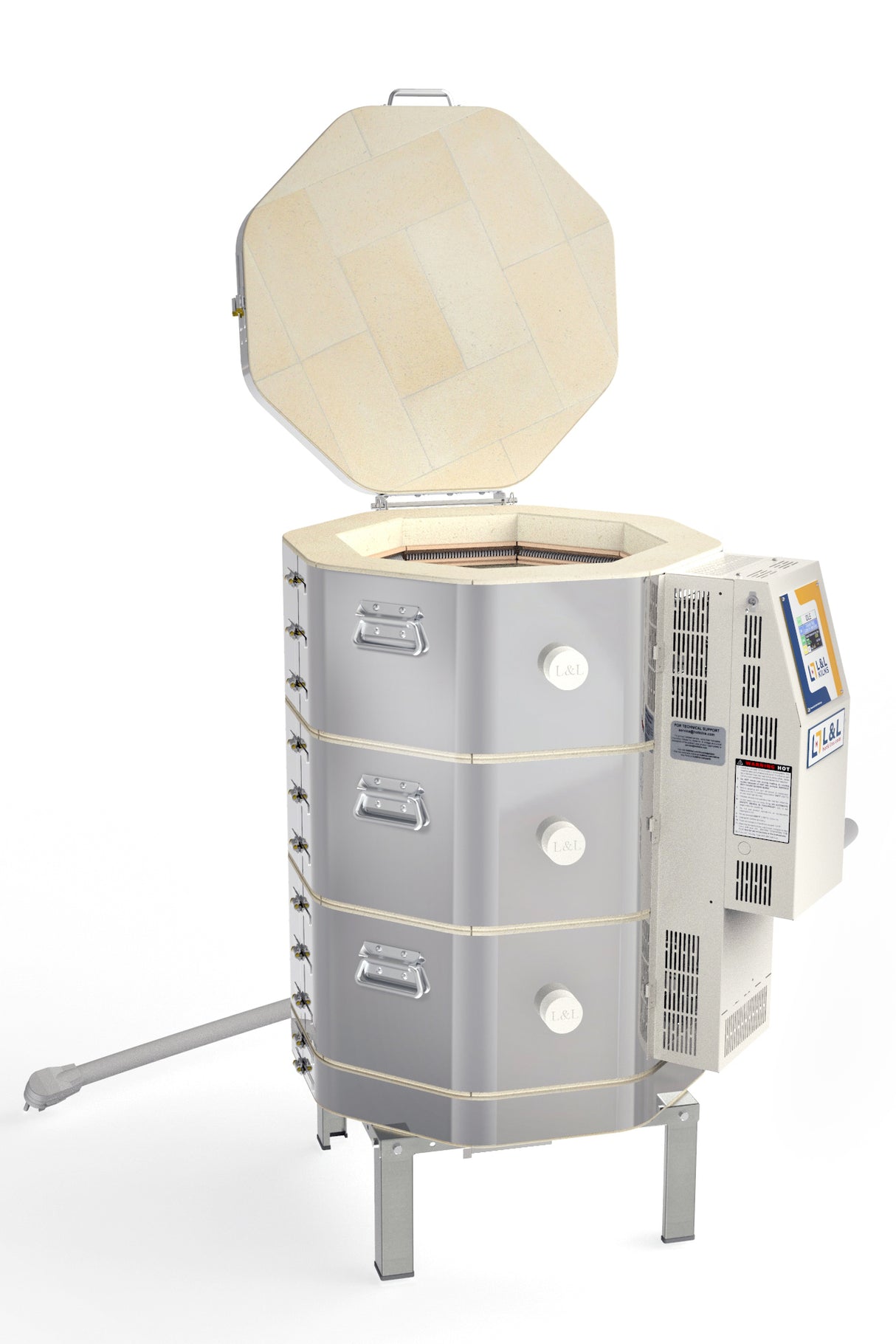

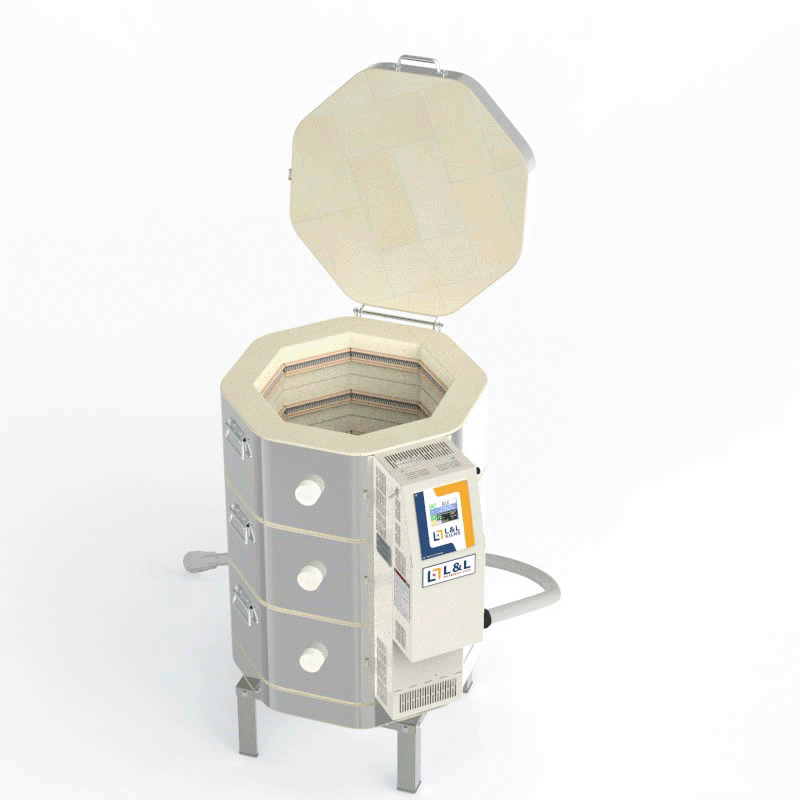

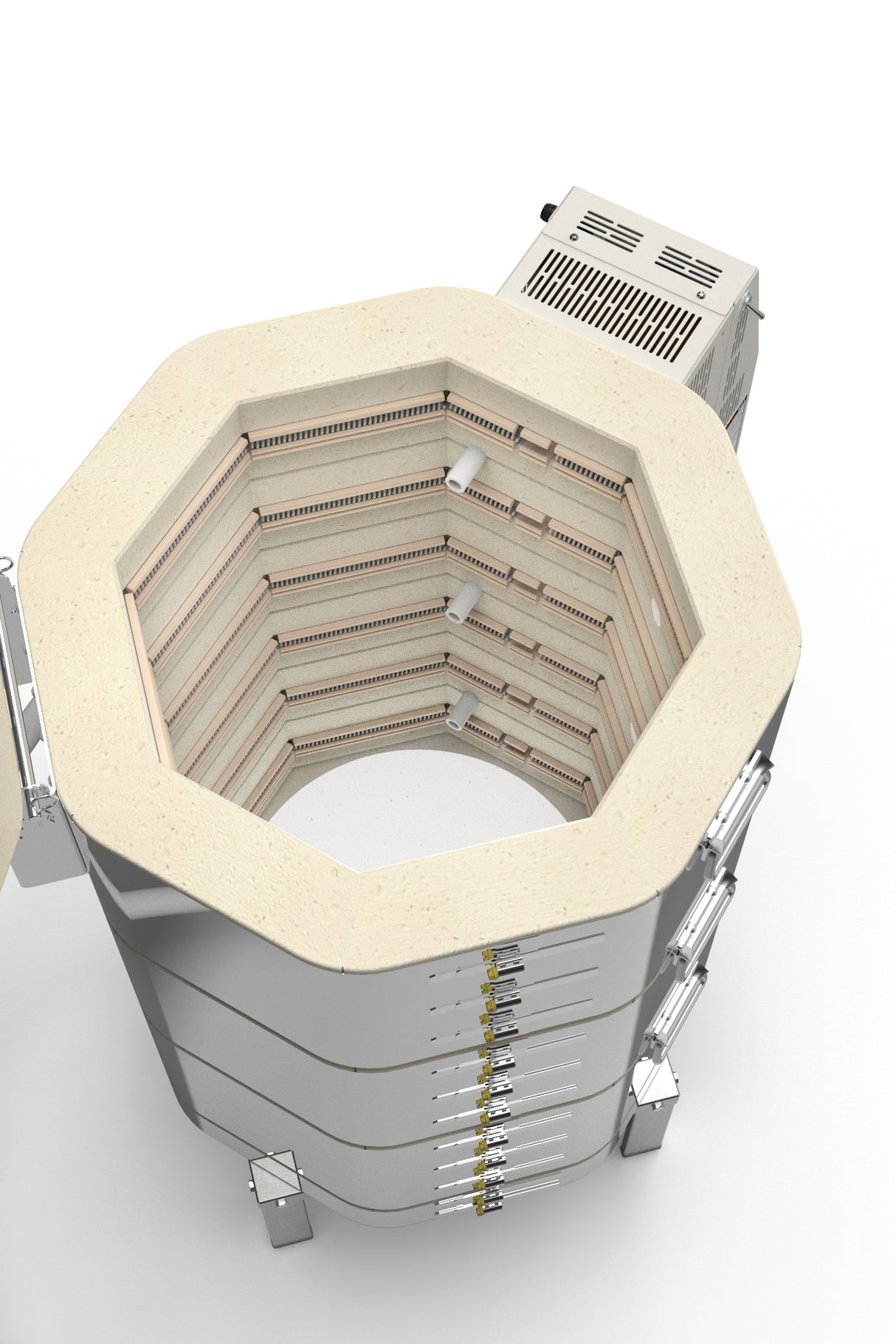

Model e18T-3 Easy-Fire Automatic Kiln with Multi-Program Three-Zoned Genesis Touchscreen control mounted in an easy-open, cool-firing, piggyback control panel that is angled for easy viewing of control. Kiln comes with hard ceramic element holders, protected thermocouples, a strong solid-top stand, and solid peephole plugs. 16-1/2" diameter by 27" high (3.7 cubic ft - 105 Liters). 3" K23 brick. NEMA 6-50 single phase or 15-50 three phase 6 foot power cord included. There are three thermocouples. No charge for 3-phase versions. C-MET-us listed in the USA & Canada. Cone 10 for all voltages.

SPECIFICATIONS

e18T-3 Specification Sheet

Small (3.7 cubic feet)

Genesis Multi-Zone Touchscreen Control

Cone 10, 2350F, 1290C

ELECTRIC SPECS & REQUIREMENTS

e18T-3-240V-1PH

Watts: 8,400

Volts: 240

Phase: Single Phase

Fuse Size: 50 Amp

Additional Information

Amps: 35

Wire Connection: NEMA 6-50 1 Phase Plug with six foot cord. Neutral is not used. (Kiln may be direct wired without affecting the MET listing)

Wire Gauge for Connection: 6 Ga

Branch Fusing: Not Branch Fused

Element Wiring: Series

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-MET-us listed to UL499 Standards in the US and Canada

e18T-3-240V-3PH

Watts: 8,400

Volts: 240

Phase: Three Phase (Delta)

Fuse Size: 30 Amp

Additional Information

Amps: 20.2

Wire Connection: NEMA 15-50 3 Phase Plug with six foot cord. Neutral is not used. (Kiln may be direct wired without affecting the MET listing)

Wire Gauge for Connection: 10 Ga

Branch Fusing: Not Branch Fused

Element Wiring: Series

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-MET-us listed to UL499 Standards in the US and Canada

e18T-3-208V-1PH

Watts: 8,400

Volts: 208

Phase: Single Phase

Fuse Size: 60 Amp

Additional Information

Amps: 40.4

Wire Connection: NEMA 6-50 1 Phase Plug with six foot cord. Neutral is not used. (Kiln may be direct wired without affecting the MET listing)

Wire Gauge for Connection: 6 Ga

Branch Fusing: Not Branch Fused

Element Wiring: Series

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-MET-us listed to UL499 Standards in the US and Canada

e18T-3-208V-3PH

Watts: 8,400

Volts: 208

Phase: Three Phase (Delta)

Fuse Size: 30 Amp

Additional Information

Amps: 23.3

Wire Connection: NEMA 15-50 3 Phase Plug with six foot cord. Neutral is not used. (Kiln may be direct wired without affecting the MET listing)

Wire Gauge for Connection: 10 Ga

Branch Fusing: Not Branch Fused

Element Wiring: Series

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-MET-us listed to UL499 Standards in the US and Canada

ACCESSORIES

Vent-Sure Downdraft Kiln Vent System

View Image

A Critical component in the longevity of your kiln. The Vent-Sure automatic kiln vent helps prevent corrosion on the inside and outside of your kiln.

Price: $

e18T-3 Furniture Kit

View Image

Includes: Two 15" Full Round Shelves and Four 15" Half Round Shelves (5/8" thick), Six each of 1/2", 1", 2", 4", 6", & 8" high 1-1/2" Square Ceramic Posts, and One Pair Heat Resistant Gloves

Price: $

SHIPPING

Kiln: 47in L x 31in W x 45in H ( 119cm L x 79cm W x 114cm H )

Ship Weight: 280 lbs (127 kg)

Kiln with Furniture Kit: 47in L x 31in W x 45in H ( 119cm L x 79cm W x 114cm H )

Ship Weight: 325 lbs (147 kg)

Kiln with Vent: 47in L x 31in W x 52in H ( 119cm L x 79cm W x 132cm H )

Ship Weight: 295 lbs (134 kg)

Kiln with Vent and Furniture Kit: 47in L x 31in W x 52in H ( 119cm L x 79cm W x 132cm H )

Ship Weight: 340 lbs (154 kg)

Packaging: Skidded Carton with Foam-in-Place packaging
