DESCRIPTION

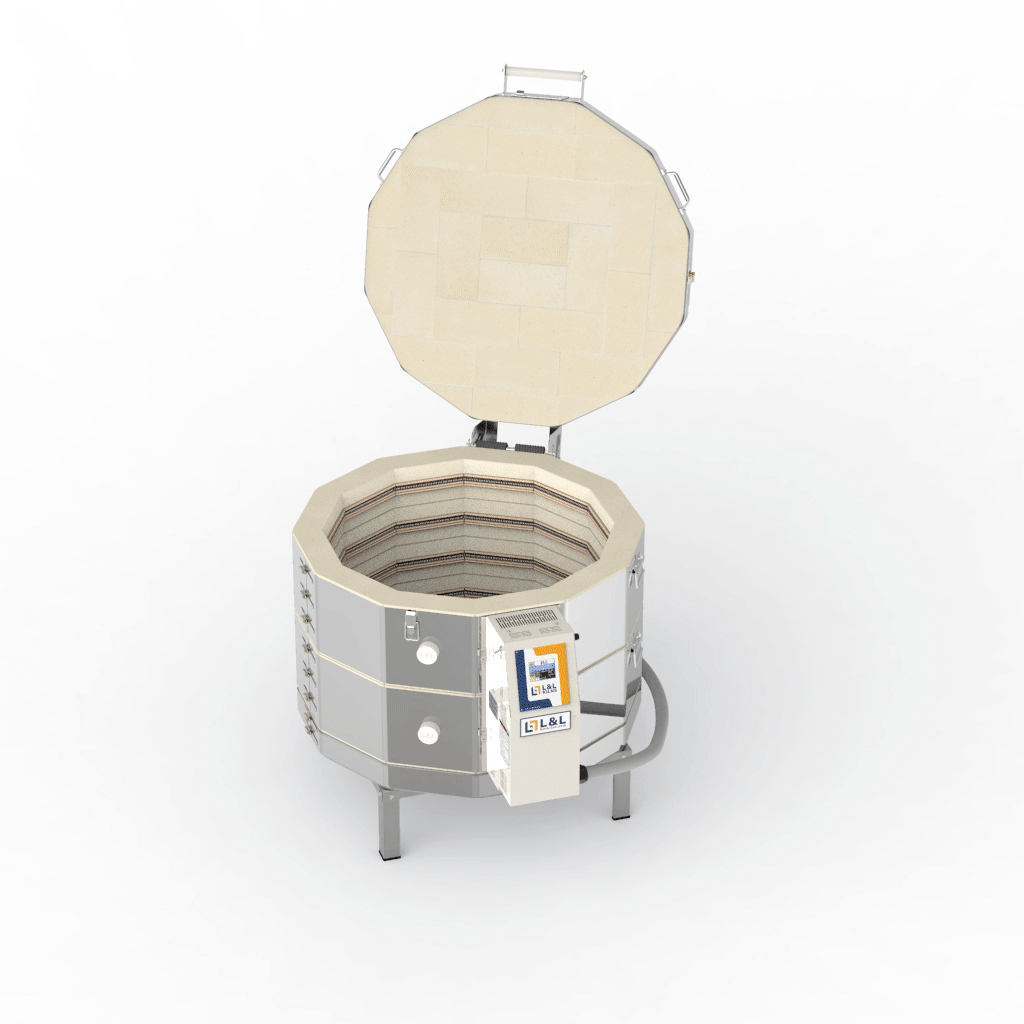

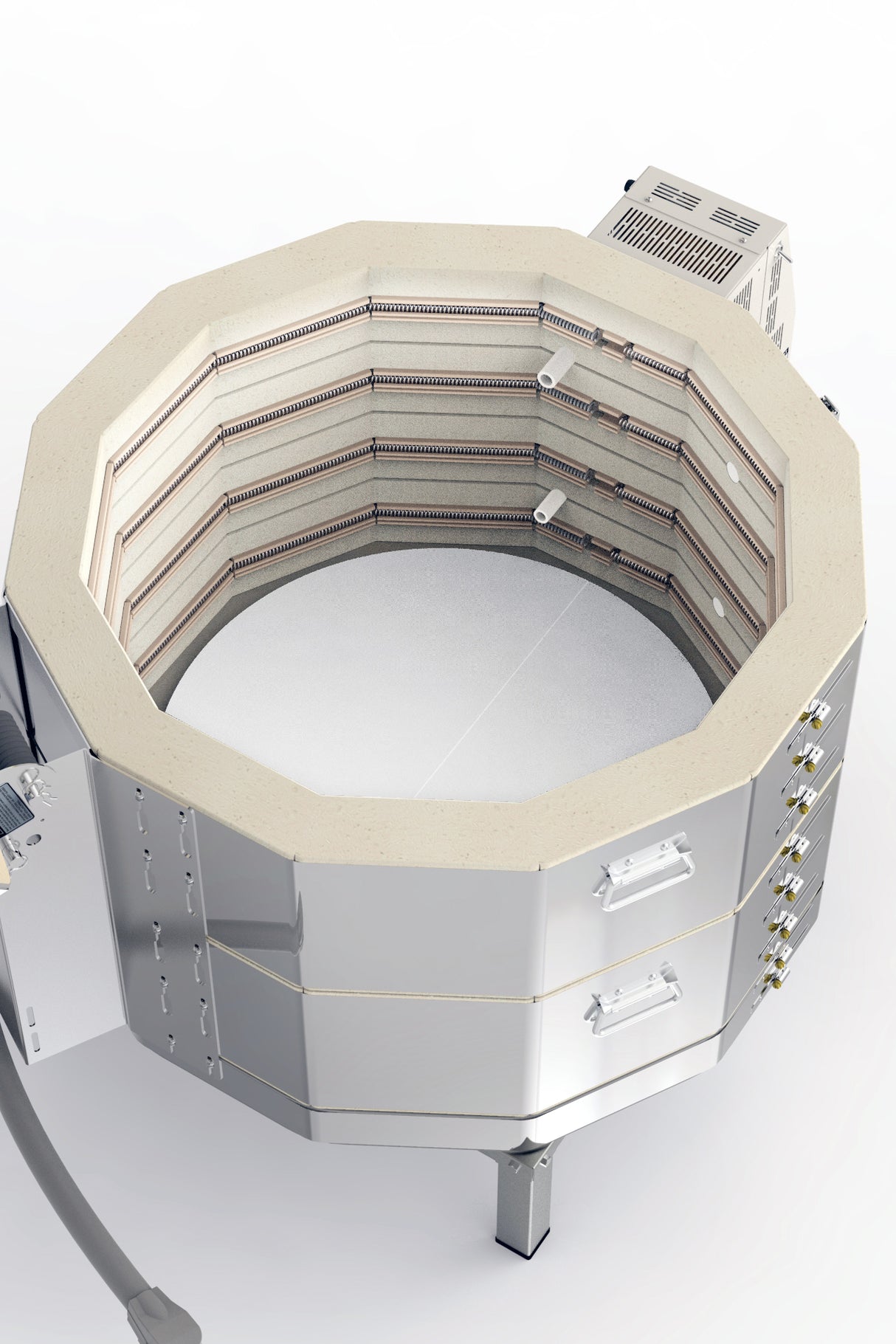

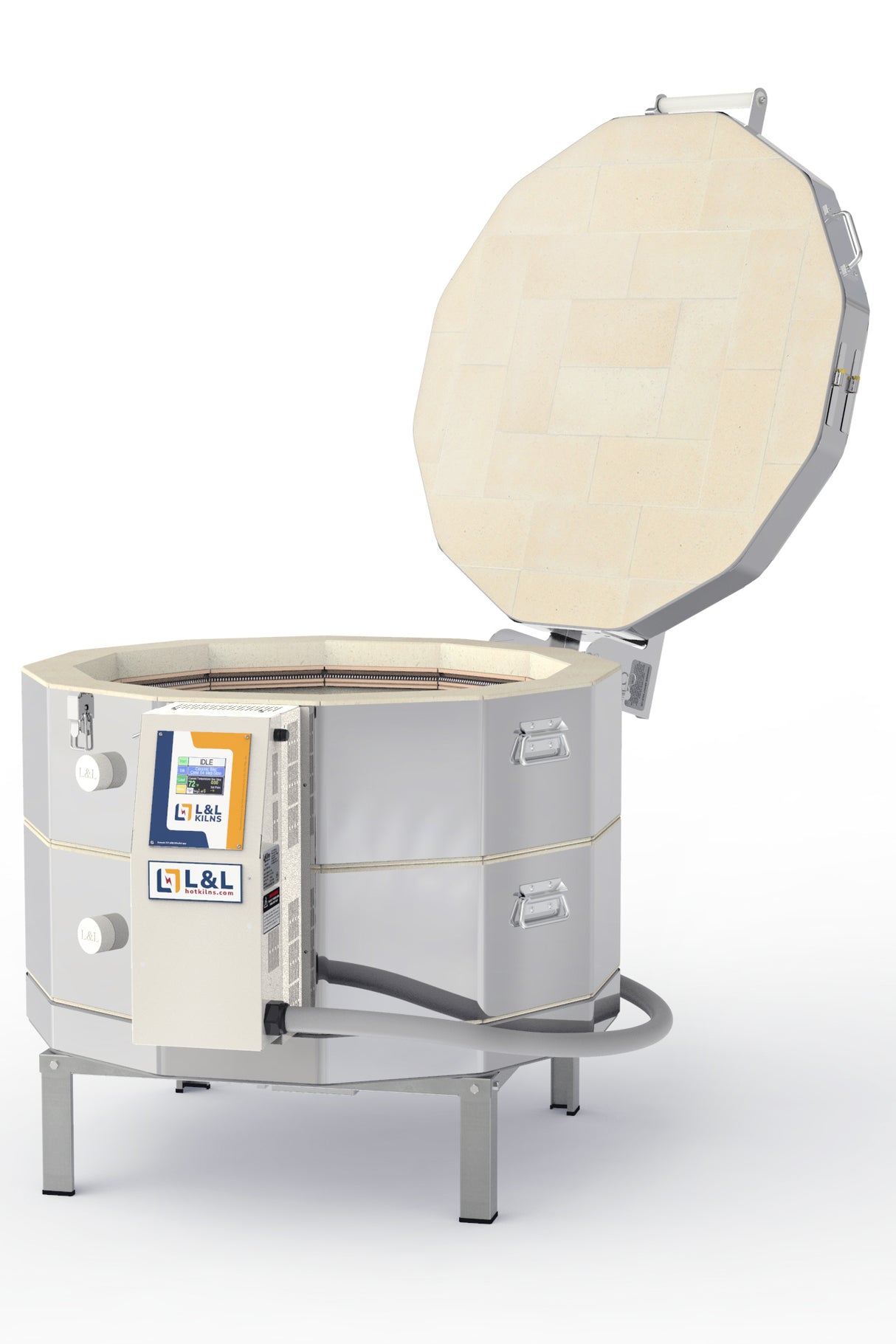

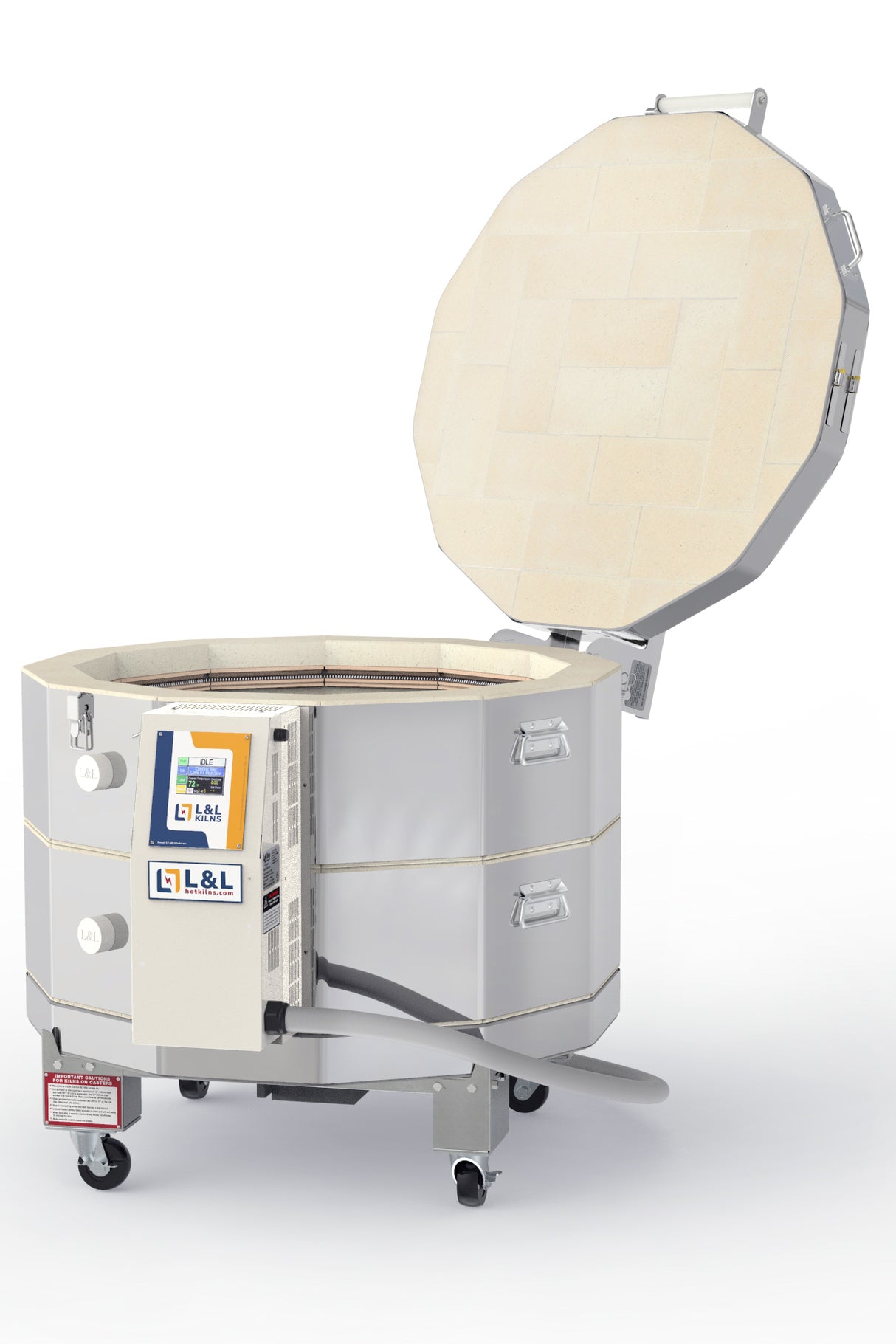

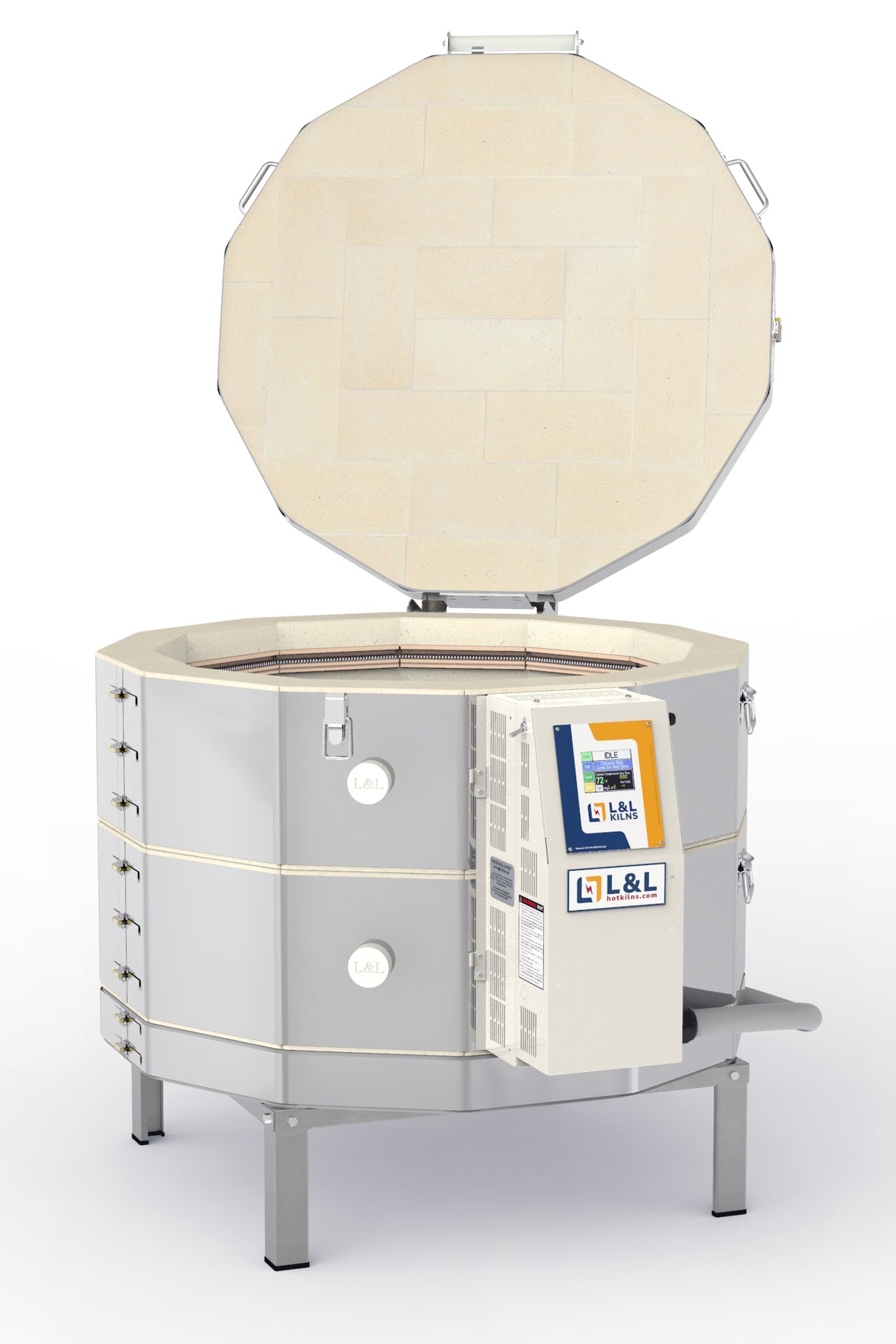

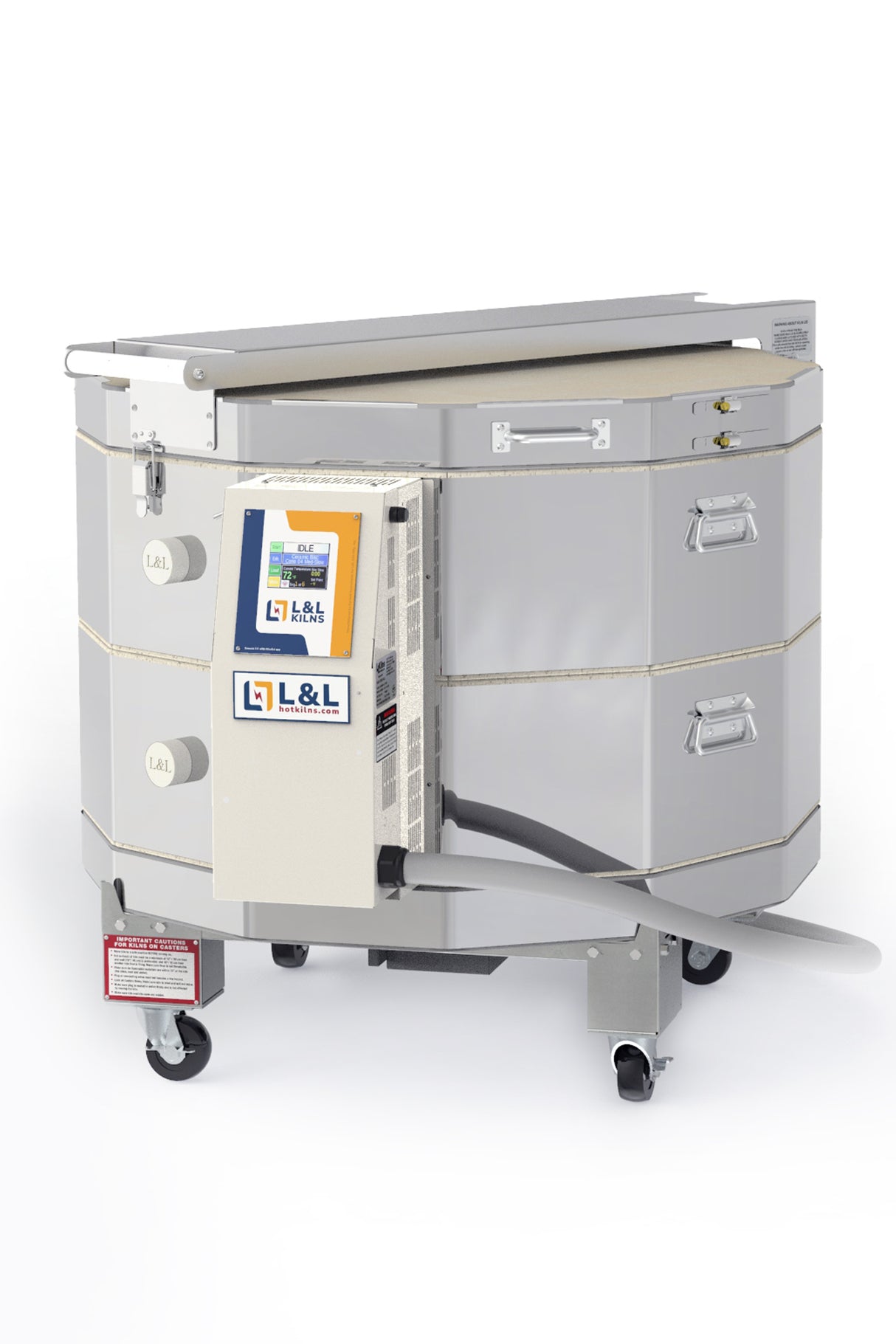

e28S-3 Pottery Kiln

LEAD TIME: 10-12 WEEKS

The e28S-3 features L&L's largest Easy-Fire diameter at 28 inches, giving you a wide-open firing chamber that accommodates oversized platters, large sculptural pieces, and wide-format work that simply won't fit in a 23" kiln. The short height keeps the overall profile manageable and makes loading easier when you're working with heavy or awkward pieces that need to be placed carefully on the bottom shelf.  This is the perfect kiln for someone 5 foot 2 inches tall or less.  Don’t be thrown off by this kiln's shorter height- it has as much firing space as the popular e23T-3 model, with a shorter height that makes loading a breeze.

Rated for cone 10 across all voltages, the e28S-3 gives you the confidence to fire cone 5-6 functional ware while having full high-fire capability when you need it. With a 28" interior, the e28S-3 uses 25-1/2" half-round shelves — the largest in the Easy-Fire series. That extra shelf real estate adds up fast when you're loading a bisque firing or trying to get a full set of dinner plates through in one load. The Genesis 2.0 controller with two-zone dynamic control keeps the wide chamber firing evenly.

The Kiln Guy specializes in delivering and installing large kilns safely. A 28" kiln is significantly heavier than smaller models, and getting it into your studio properly matters. We handle the delivery, placement, installation, and training so you can focus on making work.

Model e28S-3 Easy-Fire Automatic Kiln with Multi-Program Two-Zoned Genesis Touchscreen control mounted in an easy-open, cool-firing, piggyback control panel that is angled for easy viewing of control. Kiln comes with hard ceramic element holders, protected thermocouples, a strong solid-top stand, an easy-lift spring hinge, and solid peephole plugs. 28" diameter by 18" high (6.8 cubic feet). 3" K23 brick. NEMA 6-50 single phase or 15-50 three-phase 6-foot power cord included. There are two thermocouples. No charge for 3-phase versions. C-MET-us listed in the USA & Canada. Cone 10 for all voltages.

SPECIFICATIONS

e28S-3 Specification Sheet

Medium (6.8 cubic feet)

Genesis Multi-Zone Touchscreen Control

Cone 10, 2350F, 1290C

ELECTRIC SPECS & REQUIREMENTS

e28S-3-240V-1PH

Watts: 11,520

Volts: 240

Phase: Single Phase

Fuse Size: 60 Amp

Additional Information

Amps: 48

Wire Connection: NEMA 6-50 1 Phase Plug with six foot cord. Neutral is not used. (Kiln may be direct wired without affecting the MET listing)

Wire Gauge (75 deg C) for Connection: 6 Ga

Branch Fusing: Not Branch Fused

Element Wiring: Parallel

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-ETL-us listed to UL499 in the USA and CSA C22.2#221:2020 in Canada

e28S-3-240V-3PH

Watts: 11,520

Volts: 240

Phase: Three Phase (Delta)

Fuse Size: 60 Amp

Additional Information

Amps: 41.6

Wire Connection: NEMA 15-50 3 Phase Plug with six foot cord. Neutral is not used. (Kiln may be direct wired without affecting the MET listing)

Wire Gauge (75 deg C) for Connection: 6 Ga

Branch Fusing: Not Branch Fused

Element Wiring: Parallel

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-ETL-us listed to UL499 in the USA and CSA C22.2#221:2020 in Canada

e28S-3-208V-1PH

Watts: 9,985

Volts: 208

Phase: Single Phase

Fuse Size: 60 Amp

Additional Information

Amps: 48

Wire Connection: NEMA 6-50 1 Phase Plug with six foot cord. Neutral is not used. (Kiln may be direct wired without affecting the MET listing)

Wire Gauge (75 deg C) for Connection: 6 Ga

Branch Fusing: Not Branch Fused

Element Wiring: Parallel

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-ETL-us listed to UL499 in the USA and CSA C22.2#221:2020 in Canada

e28S-3-208V-3PH

Watts: 9,985

Volts: 208

Phase: Three Phase (Delta)

Fuse Size: 60 Amp

Additional Information

Amps: 41.6

Wire Connection: NEMA 15-50 3 Phase Plug with six foot cord. Neutral is not used. (Kiln may be direct wired without affecting the MET listing)

Wire Gauge (75 deg C) for Connection: 6 Ga

Branch Fusing: Not Branch Fused

Element Wiring: Parallel

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-ETL-us listed to UL499 in the USA and CSA C22.2#221:2020 in Canada

ACCESSORIES

Vent-Sure Downdraft Kiln Vent System

View Vent-Sure Downdraft Vent System

A Critical component in the longevity of your kiln. The Vent-Sure automatic kiln vent helps prevent corrosion on the inside and outside of your kiln.

Price: $664.00

e28S-3 Furniture Kit

View e28S-3 Furniture Kit

Includes: Six 25-1/2" Half Round Hollow Core Shelves (5/8" thick), Six each of 1/2", 1", 2", 4", 6", & 8" high 1-1/2" Square Ceramic Posts, and One Pair Heat Resistant Gloves

Price: $636.00

SHIPPING

Kiln: 48in L x 40in W x 41in H ( 122cm L x 102cm W x 104cm H )

Ship Weight: 410 lbs (186 kg)

Kiln with Furniture Kit: 48in L x 40in W x 41in H ( 122cm L x 102cm W x 104cm H )

Ship Weight: 505 lbs (229 kg)

Kiln with Vent: 48in L x 40in W x 47in H ( 122cm L x 102cm W x 119cm H )

Ship Weight: 425 lbs (193 kg)

Kiln with Vent and Furniture Kit: 48in L x 40in W x 52in H ( 122cm L x 102cm W x 132cm H )

Ship Weight: 520 lbs (236 kg)

Packaging: Skidded Carton with Foam-in-Place packaging
