DESCRIPTION

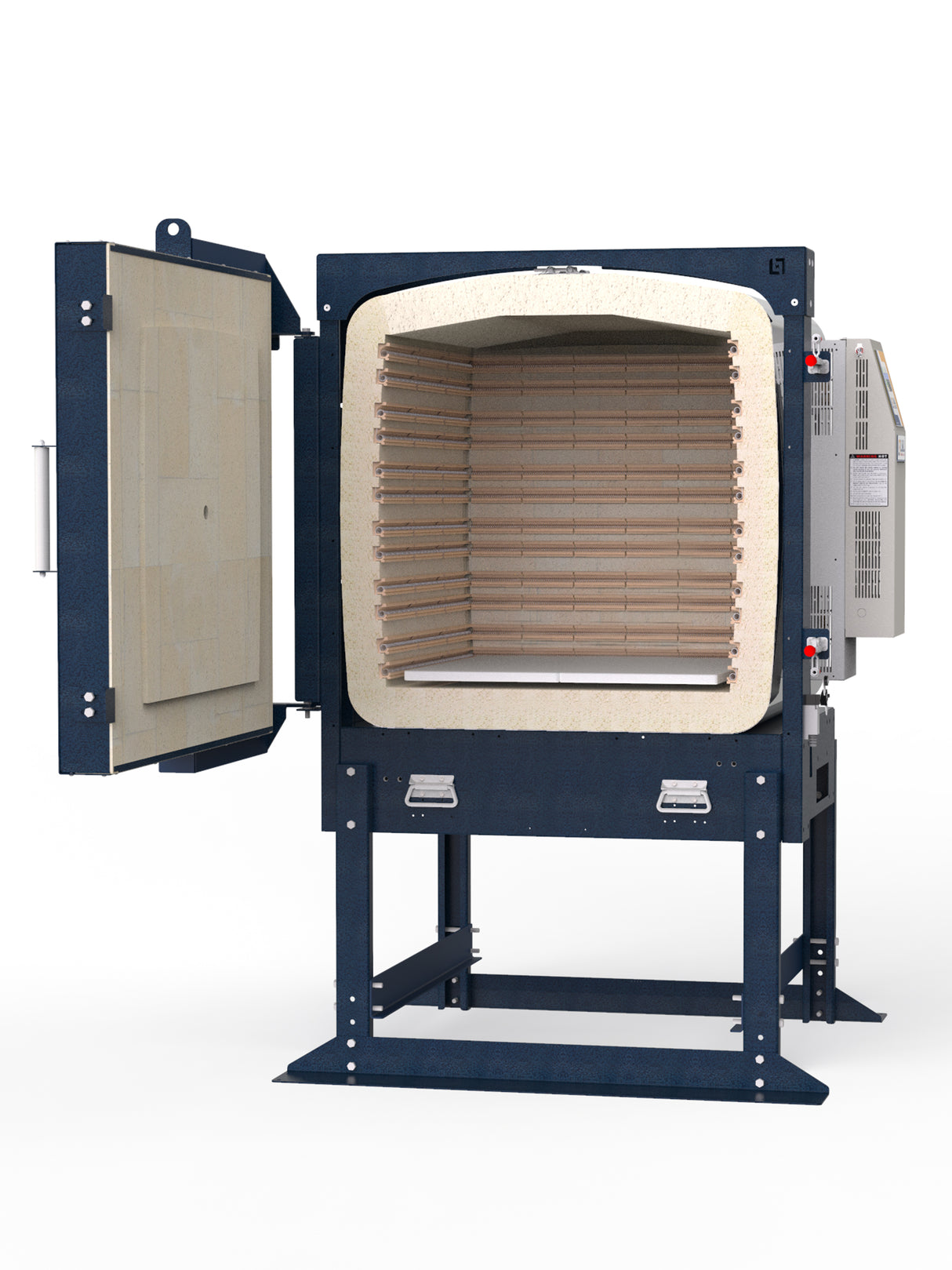

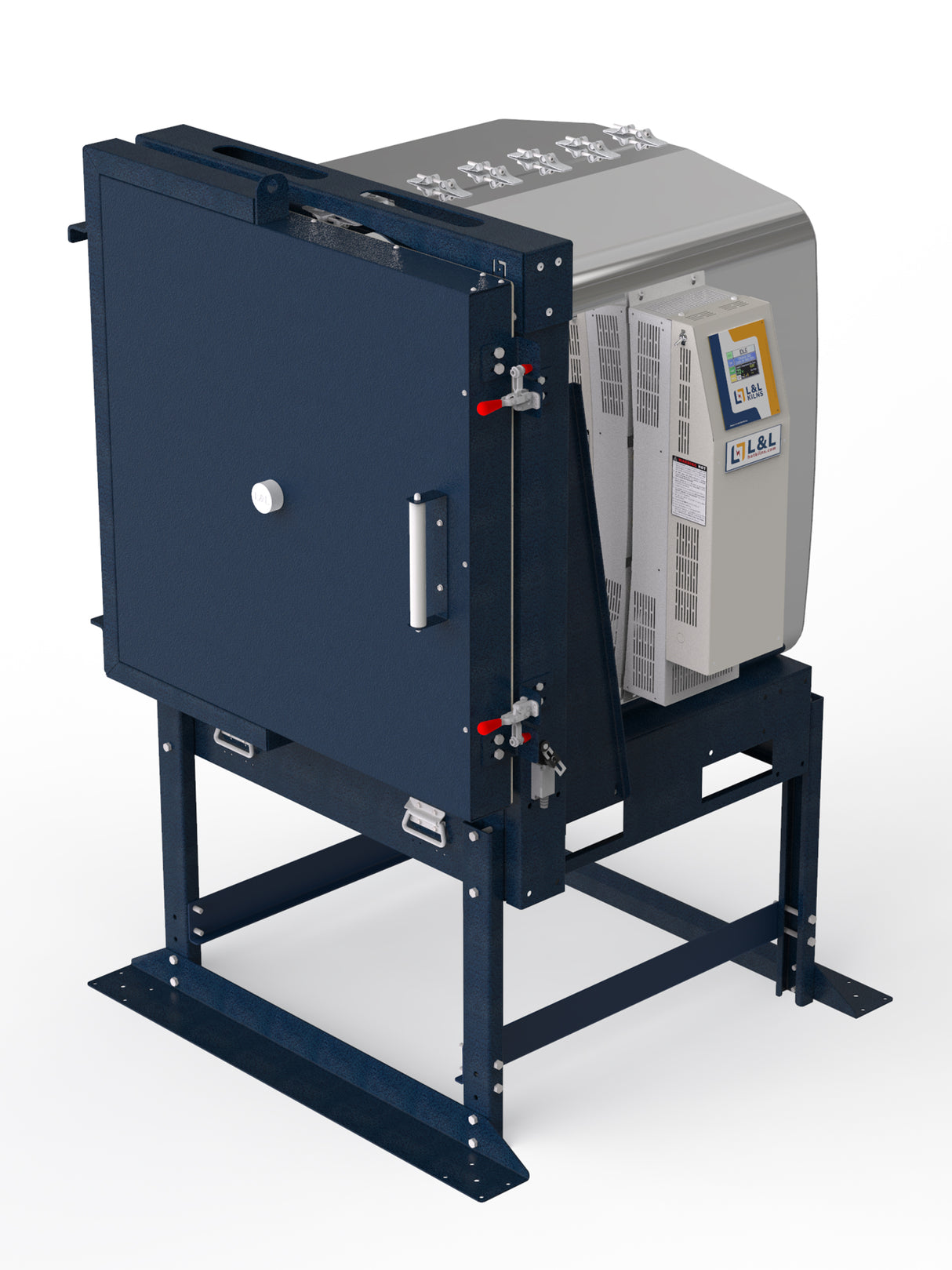

Model eFL2626 Front-Loading Kiln with Multi-Program Three-Zoned Genesis Touchscreen control, mounted in an easy-open, cool-firing, piggy-back control panel that is angled for easy viewing of control. Kiln comes with hard ceramic element holders, protected thermocouples, a stand, and a solid peephole plug.  The sides and top are arched for super strength. The base, door, and door frame are formed from precision sheet metal to be both lightweight and strong. These kilns ship by common carrier, and are inexpensive to buy, install, and maintain. 26"W by 26"H by 26" D (10.2 cubic feet). 3" K23 brick. Direct wire hookup. Cone 10 for all voltages. Three thermocouples. No charge for 3-phase versions. C-MET-us is listed to UL499 in the USA & Canada. Note: Casters are optional.

Special Order Kiln-See This Checklist Before Ordering

SPECIFICATIONS

eFL2626 Specification Sheet

Large (10.2 cubic feet)

Genesis Multi-Zone Touchscreen Control

Cone 10, 2350F, 1290C

ELECTRIC SPECS & REQUIREMENTS

eFL2626-240V-1PH

Watts: 15,360

Volts: 240

Phase: Single Phase

Fuse Size: 80 Amp

Additional Information

Amps: 64

Wire Connection: Direct Wire Connection (no cord included)

Wire Gauge (75 deg C) for Connection: 4 Ga

Branch Fusing: Branch Fused

Element Wiring: Parallel

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-ETL-us listed to UL499 in the USA and CSA C22.2#221:2020 in Canada

eFL2626-240V-3PH

Watts: 15,360

Volts: 240

Phase: Three Phase (Delta)

Fuse Size: 50 Amp

Additional Information

Amps: 37

Wire Connection: NEMA 15-50 3 Phase Plug with six foot cord. Neutral is not used. (Kiln may be direct wired without affecting the MET listing)

Wire Gauge (75 deg C) for Connection: 8 Ga

Branch Fusing: Not Branch Fused

Element Wiring: Parallel

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-ETL-us listed to UL499 in the USA and CSA C22.2#221:2020 in Canada

eFL2626-208V-1PH

Watts: 15,360

Volts: 208

Phase: Single Phase

Fuse Size: 100 Amp

Additional Information

Amps: 73.8

Wire Connection: Direct Wire Connection (no cord included)

Wire Gauge (75 deg C) for Connection: 3 Ga

Branch Fusing: Branch Fused

Element Wiring: Parallel

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-ETL-us listed to UL499 in the USA and CSA C22.2#221:2020 in Canada

eFL2626-208V-3PH

Watts: 15,360

Volts: 208

Phase: Three Phase (Delta)

Fuse Size: 60 Amp

Additional Information

Amps: 42.6

Wire Connection: NEMA 15-50 3 Phase Plug with six foot cord. Neutral is not used. (Kiln may be direct wired without affecting the MET listing)

Wire Gauge (75 deg C) for Connection: 6 Ga

Branch Fusing: Not Branch Fused

Element Wiring: Parallel

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-ETL-us listed to UL499 in the USA and CSA C22.2#221:2020 in Canada

ACCESSORIES

Vent-Sure Downdraft Kiln Vent System

View image

A Critical component in the longevity of your kiln. The Vent-Sure automatic kiln vent helps prevent corrosion on the inside and outside of your kiln.

Price: $

eFL2626 Furniture Kit

View Image

Includes: Six 12" x 24" Rectangular Shelves (3/4" thick), Six Each 1/2", 1", 2", 4", 6", and 8" Square Posts, and One Pair Heat Resistant Gloves

Price: $

SHIPPING

Kiln: 48in L x 48in W x 50in H ( 122cm L x 122cm W x 127cm H )

Ship Weight: 730 lbs (331 kg)

Kiln with Furniture Kit: 48in L x 48in W x 50in H ( 122cm L x 122cm W x 127cm H )

Ship Weight: 835 lbs (379 kg)

Kiln with Vent: 48in L x 48in W x 50in H ( 122cm L x 122cm W x 127cm H )

Ship Weight: 745 lbs (338 kg)

Kiln with Vent and Furniture Kit: 48in L x 48in W x 50in H ( 122cm L x 122cm W x 127cm H )

Ship Weight: 850 lbs (386 kg)

Packaging: Engineered Pallet for kiln unloading with high lift pallet jack with Foam-in-Place packaging
