DESCRIPTION

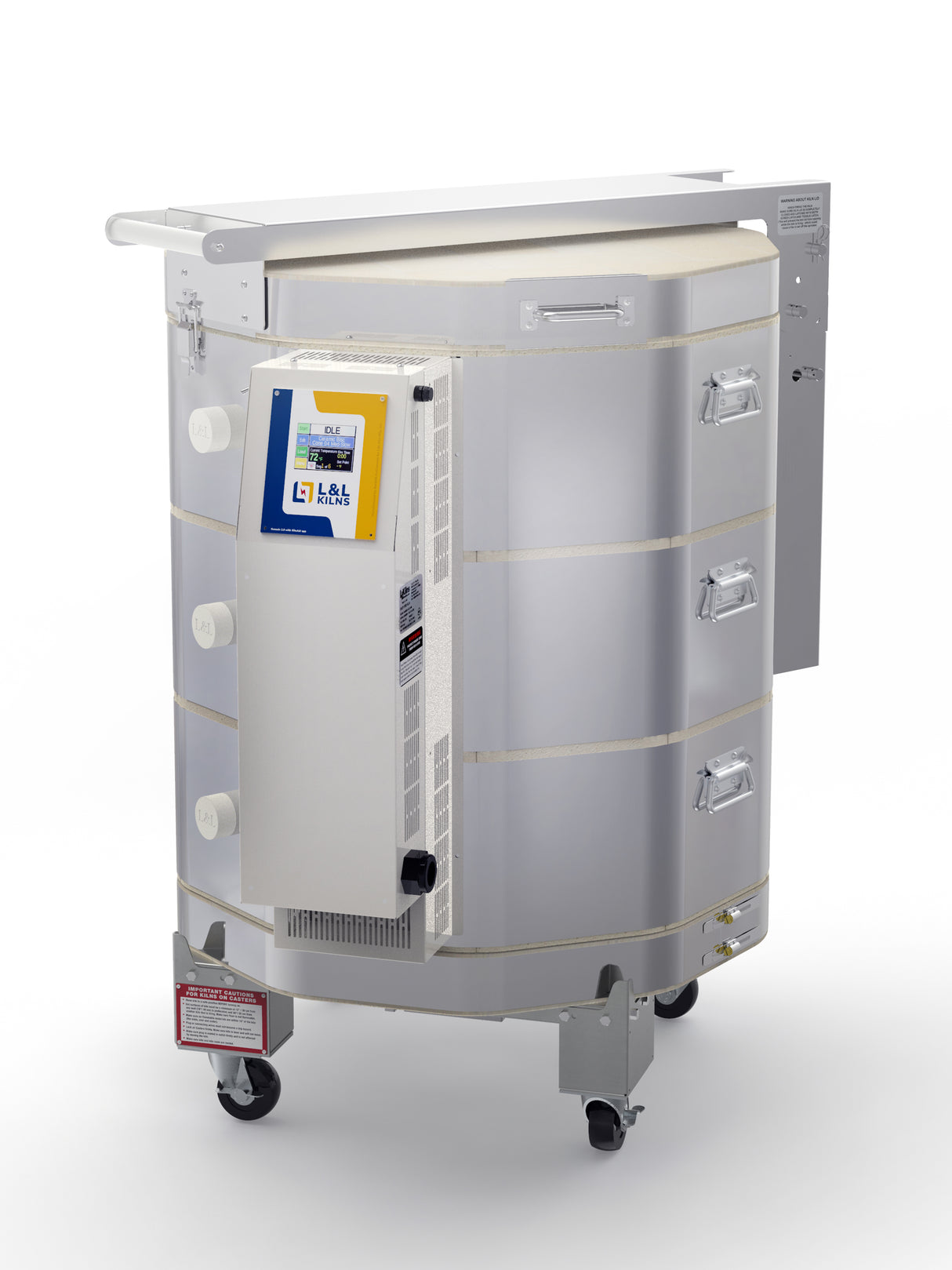

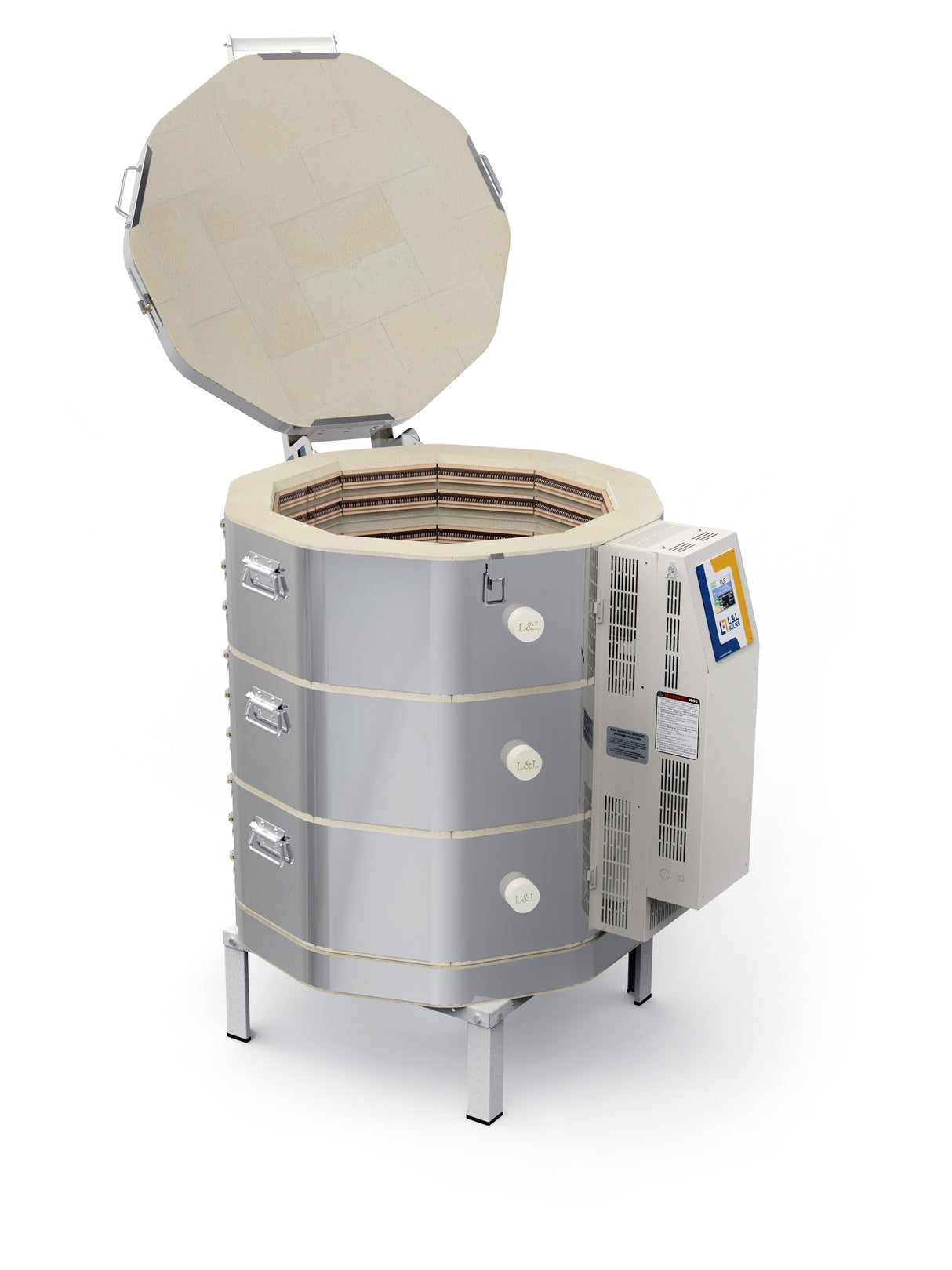

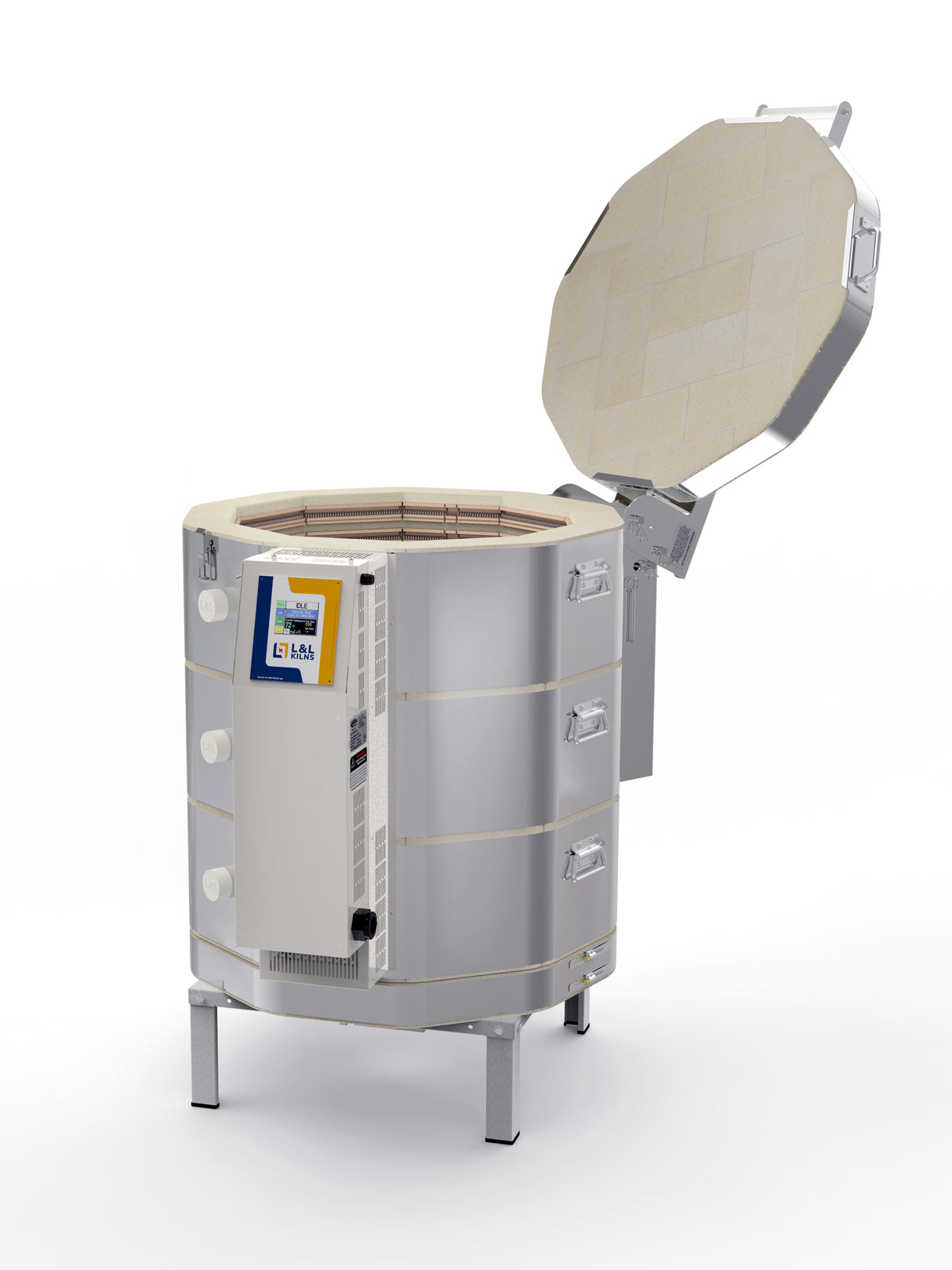

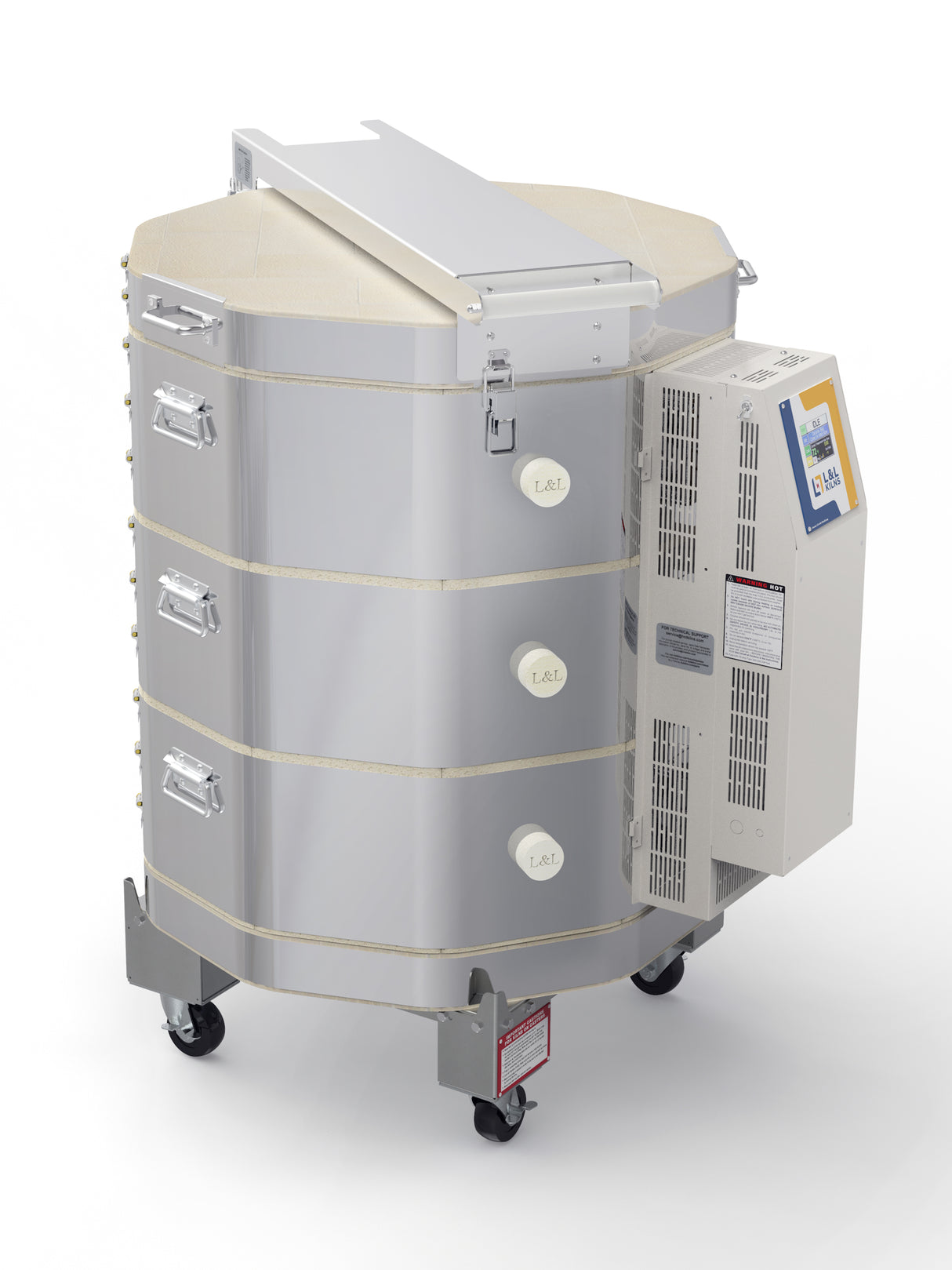

Model eQ2327-3 eQuad-Pro Production Kiln with Multi-Program Three-Zoned Genesis Touchscreen control mounted in an easy-open cool-firing piggy-back control panel that is angled for easy viewing of control. Kiln comes with hard ceramic element holders, Quad Heavy Duty Elements, protected thermocouples, a strong solid-top stand, an easy-lift spring hinge, and solid peephole plugs. 22-3/8" diameter by 27" high (6.7 cubic feet). 3" K23 brick. Higher power than normal kilns. Includes panel circuit fuses. Direct power connection. Cone 10 for all voltages. Three thermocouples. No charge for 3-phase versions. C-MET-us is listed in the USA & Canada. Cone 10 for all voltages.

SPECIFICATIONS

eQ2827-3 Specification Sheet

Medium (6.7 cubic feet)

Genesis Multi-Zone Touchscreen Control

Cone 10, 2350F, 1290C

For High Production

ELECTRIC SPECS & REQUIREMENTS

eQ2327–3-240V-1PH

Watts: 13,440

Volts: 240

Phase: Single Phase

Fuse Size: 70 Amp

Additional Information

Amps: 56

Wire Connection: Direct Wire Connection (no cord included)

Wire Gauge for Connection: 4 Ga

Branch Fusing: Branch Fused

Element Wiring: Parallel

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-MET-us listed to UL499 Standards in the US and Canada

eQ2327–3-240V-3PH

Watts: 13,440

Volts: 240

Phase: Three Phase (Delta)

Fuse Size: 50 Amp

Additional Information

Amps: 32.3

Wire Connection: NEMA 15-50 3 Phase Plug with six foot cord. Neutral is not used. (Kiln may be direct wired without affecting the MET listing)

Wire Gauge for Connection: 6 Ga

Branch Fusing: Branch Fused

Element Wiring: Parallel

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-MET-us listed to UL499 Standards in the US and Canada

eQ2327–3-208V-1PH

Watts: 11,648

Volts: 208

Phase: Single Phase

Fuse Size: 70 Amp

Additional Information

Amps: 56

Wire Connection: Direct Wire Connection (no cord included)

Wire Gauge for Connection: 4 Ga

Branch Fusing: Branch Fused

Element Wiring: Parallel

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-MET-us listed to UL499 Standards in the US and Canada

eQ2327–3-208V-3PH

Watts: 11,648

Volts: 208

Phase: Three Phase (Delta)

Fuse Size: 50 Amp

Additional Information

Amps: 32.3

Wire Connection: NEMA 15-50 3 Phase Plug with six foot cord. Neutral is not used. (Kiln may be direct wired without affecting the MET listing)

Wire Gauge for Connection: 6 Ga

Branch Fusing: Branch Fused

Element Wiring: Parallel

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-MET-us listed to UL499 Standards in the US and Canada

ACCESSORIES

Vent-Sure Downdraft Kiln Vent System

View Image

A Critical component in the longevity of your kiln. The Vent-Sure automatic kiln vent helps prevent corrosion on the inside and outside of your kiln.

Price: $

eQ2327-3 Furniture Kit

View Image

Includes: Eight 20" Half Round Shelves (3/4" thick), Six each of 1/2", 1", 2", 4", 6", & 8" high 1-1/2" Square Ceramic Posts, and One Pair Heat Resistant Gloves

Price: $

SHIPPING

Kiln: 48in L x 40in W x 47in H ( 122cm L x 102cm W x 119cm H )

Ship Weight: 395 lbs (179 kg)

Kiln with Furniture Kit: 48in L x 40in W x 47in H ( 122cm L x 102cm W x 119cm H )

Ship Weight: 470 lbs (213 kg)

Kiln with Vent: 48in L x 40in W x 54in H ( 122cm L x 102cm W x 137cm H )

Ship Weight: 410 lbs (186 kg)

Kiln with Vent and Furniture Kit: 48in L x 40in W x 58in H ( 122cm L x 102cm W x 147cm H )

Ship Weight: 485 lbs (220 kg)

Packaging: Skidded Carton with Foam-in-Place packaging

eQ2327-3 Production Kiln

$5,040.00 $6,280.00
