DESCRIPTION

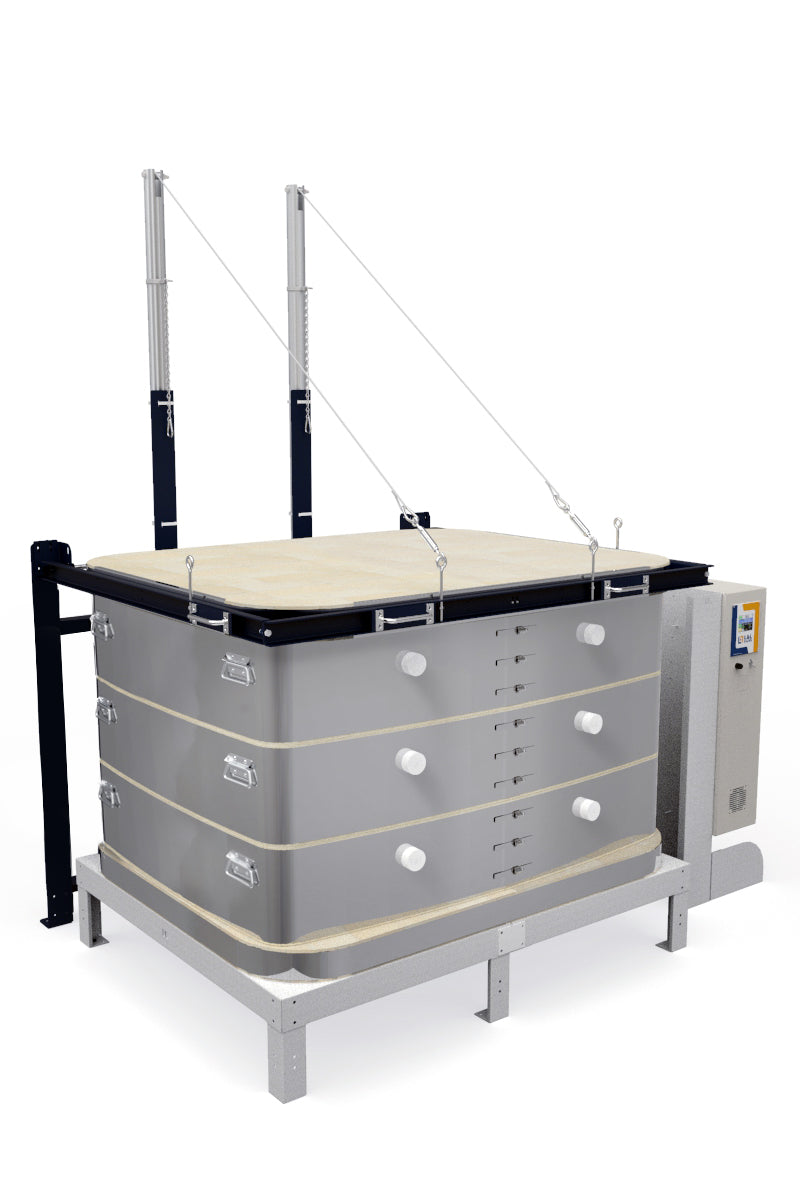

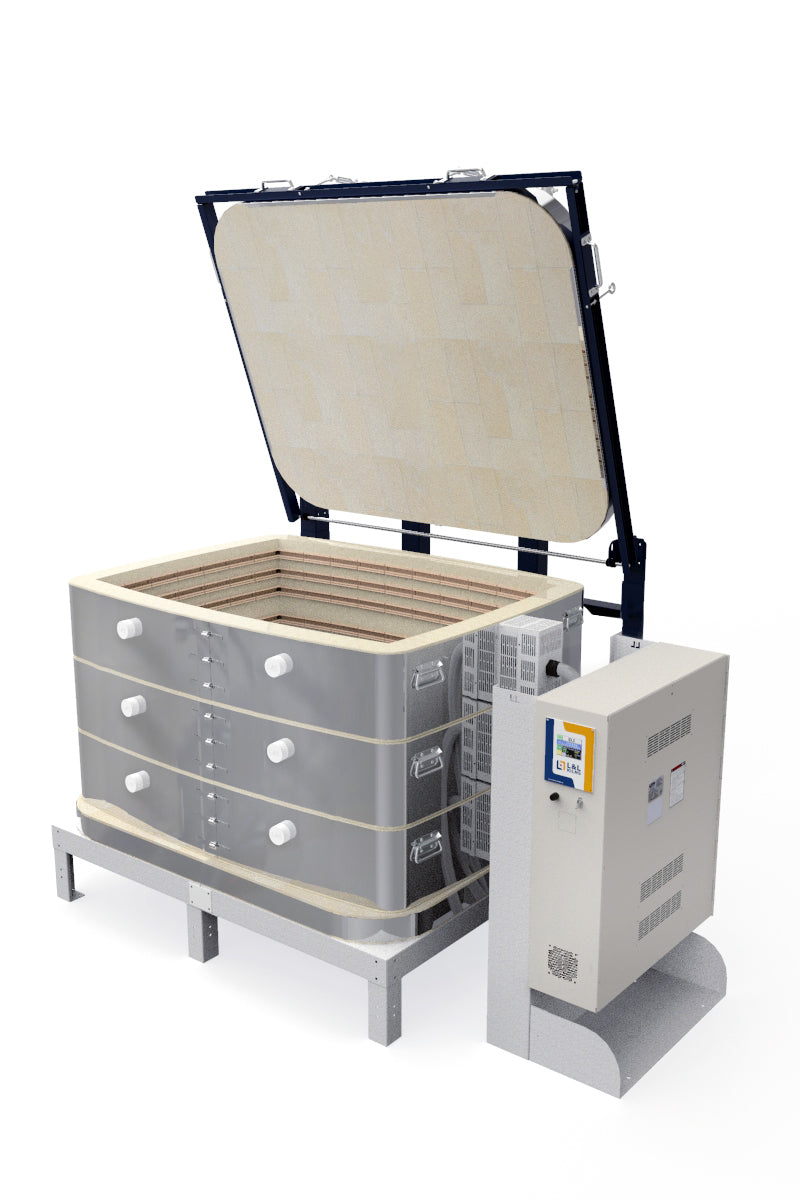

Model T3427-D Square Automatic DaVinci Kiln with a Multi-Program Three-Zoned Genesis Touchscreen control. Floor-standing control panel. Sectional and modular construction allows future expansion aided by the unique adjustable spring-loaded counterbalanced welded and powder-coated hinge system (Note: the lid on this model is a two-person lift). The stand is made of formed galvannealed steel. Sides are made of specially machined arched bricks for strength. Kiln comes with hard ceramic element holders, protected thermocouples, and solid peephole plugs. 43-1/2" Wide x 30-1/2" Deep x 27" High (20.7 cubic feet). Extra power elements for faster heat up. 3" K23 brick. Direct power connection. Three thermocouples. No charge for 3-phase versions. C-MET-us is listed in the USA & Canada. Cone 10 all voltages.

SPECIFICATIONS

T3427 Specification Sheet

Large (20.7 cubic feet)

Genesis Multi-Zone Touchscreen Control

Cone 10, 2350F, 1290C

High Powered Option

ELECTRIC SPECS & REQUIREMENTS

T3427-240v-1ph

Watts: 24,936

Volts: 240

Phase: Single Phase

Fuse Size: 150 Amp

Additional Information

Amps: 103.9

Wire Connection: Direct Wire Connection (no cord included)

Wire Gauge (75 deg C) for Connection: 1 Ga

Branch Fusing: Branch Fused

Element Wiring: Parallel

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-ETL-us listed to UL499 in the USA and CSA C22.2#221:2020 in Canada

T3427-240v-3ph

Watts: 24,936

Volts: 240

Phase: Three Phase (Delta)

Fuse Size: 80 Amp

Additional Information

Amps: 60

Wire Connection: Direct Wire Connection (no cord included)

Wire Gauge (75 deg C) for Connection: 4 Ga

Branch Fusing: Branch Fused

Element Wiring: Parallel

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-ETL-us listed to UL499 in the USA and CSA C22.2#221:2020 in Canada

T3427-208v-1ph

Watts: 24,936

Volts: 208

Phase: Single Phase

Fuse Size: 150 Amp

Additional Information

Amps: 119.9

Wire Connection: Direct Wire Connection (no cord included)

Wire Gauge (75 deg C) for Connection: 1/0 Ga

Branch Fusing: Branch Fused

Element Wiring: Parallel

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-ETL-us listed to UL499 in the USA and CSA C22.2#221:2020 in Canada

T3427-208v-3ph

Watts: 24,936

Volts: 208

Phase: Three Phase (Delta)

Fuse Size: 90 Amp

Additional Information

Amps: 69.2

Wire Connection: Direct Wire Connection (no cord included)

Wire Gauge (75 deg C) for Connection: 3 Ga

Branch Fusing: Branch Fused

Element Wiring: Parallel

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-ETL-us listed to UL499 in the USA and CSA C22.2#221:2020 in Canada

ACCESSORIES

Vent-Sure Downdraft Kiln Vent System

View image

A Critical component in the longevity of your kiln. The Vent-Sure automatic kiln vent helps prevent corrosion on the inside and outside of your kiln.

Price:

T3427 Furniture Kit

View Image

Includes: Nine 28" X 14" X 3/4" Rectangular Shelves (3/4" thick), Twelve Each 1/2", 1", 2", 4", 6", and 8" Square Posts, and One Pair Heat Resistant Gloves

Price: $

SHIPPING

Kiln: Skid #1: 63in L x 48in W x 47in H | Skid #2: 48in L x 40in W x 84in H ( Skid #1: 160cm L x 122cm W x 119cm H | Skid #2: 122cm L x 102cm W x 213cm H )

Ship Weight: 1215 lbs (551 kg)

Kiln with Furniture Kit: Skid #1: 63in L x 48in W x 47in H | Skid #2: 48in L x 40in W x 84in H ( Skid #1: 160cm L x 122cm W x 119cm H | Skid #2: 122cm L x 102cm W x 213cm H )

Ship Weight: 1405 lbs (637 kg)

Kiln with Vent: Skid #1: 63in L x 48in W x 54in H | Skid #2: 48in L x 40in W x 84in H ( Skid #1: 160cm L x 122cm W x 137cm H | Skid #2: 122cm L x 102cm W x 213cm H )

Ship Weight: 1230 lbs (558 kg)

Kiln with Vent and Furniture Kit: Skid #1: 63in L x 48in W x 58in H | Skid #2: 48in L x 40in W x 84in H ( Skid #1: 160cm L x 122cm W x 147cm H | Skid #2: 122cm L x 102cm W x 213cm H )

Ship Weight: 1420 lbs (644 kg)

T3427 Electric Kiln

$11,715.00 $13,020.00
