DESCRIPTION

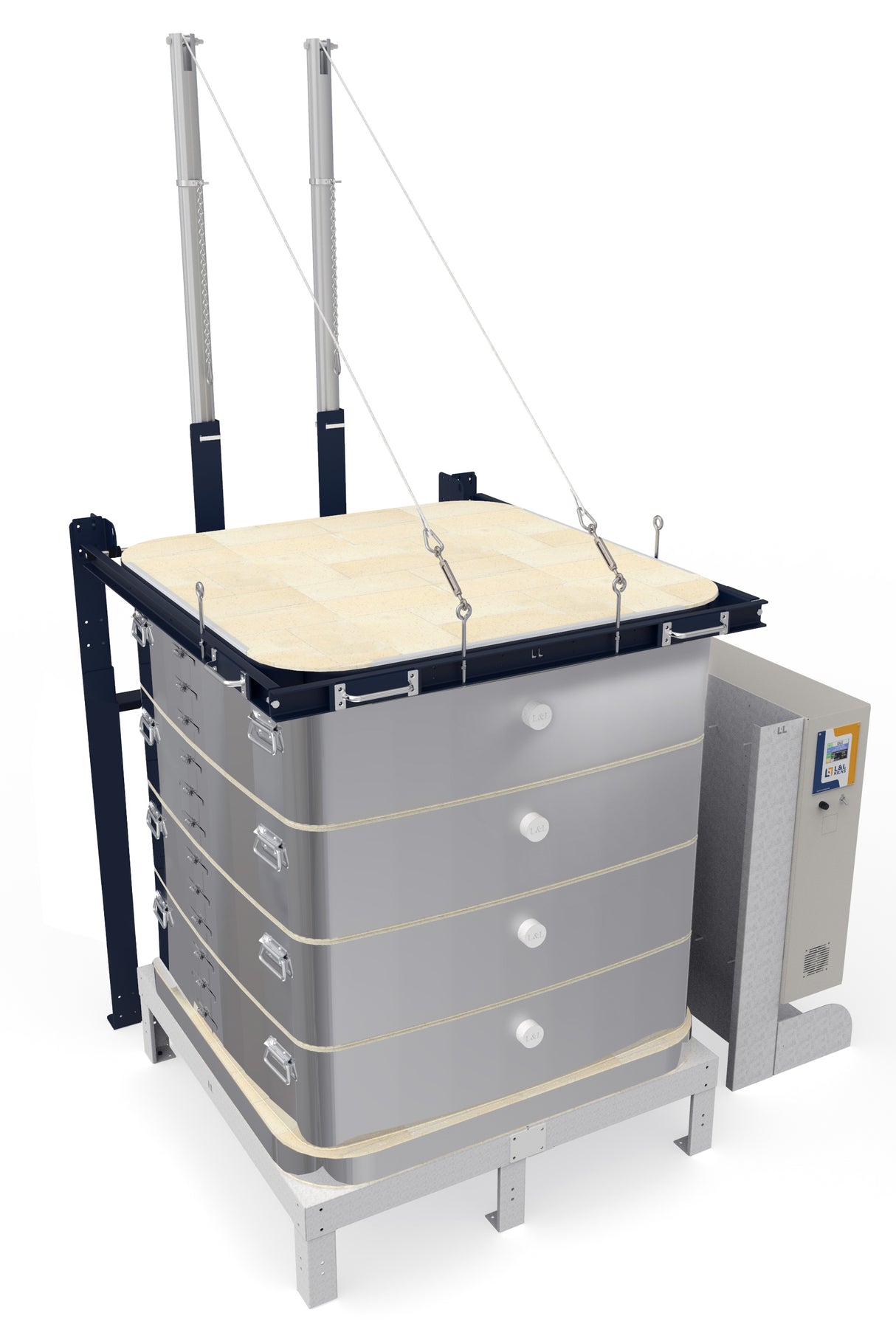

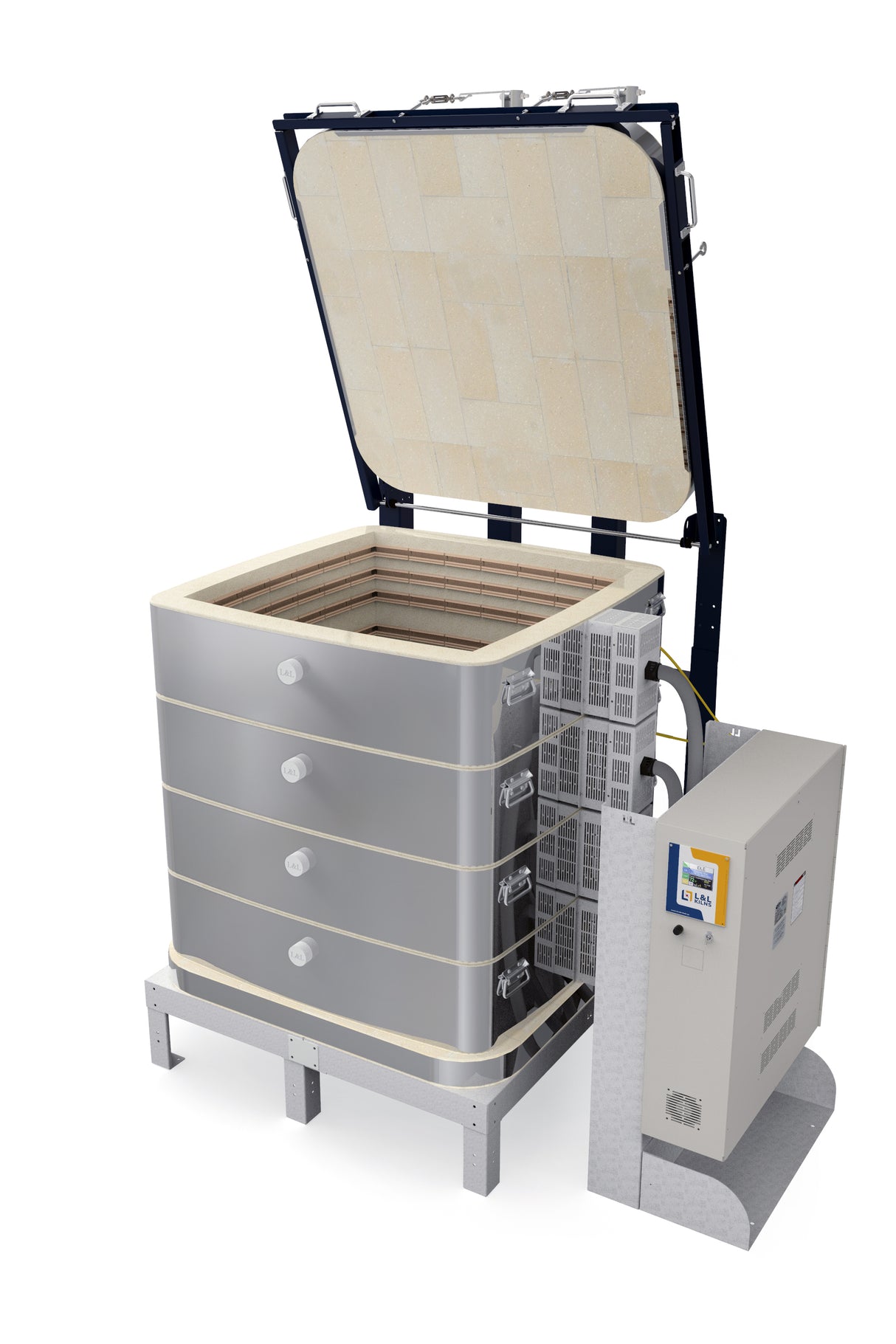

Model X3236-D Square Automatic DaVinci Kiln with a Multi-Program Three-Zoned Genesis Touchscreen control. Floor-standing control panel. Sectional and modular construction allows future expansion aided by the unique adjustable spring-loaded counterbalanced welded and powder-coated hinge system. The stand is made of formed galvannealed steel. Sides are made of specially machined arched bricks for strength. Kiln comes with hard ceramic element holders, thermocouple protection tubes, and solid peephole plugs. 30-1/2" Wide x 30-1/2" Deep x 36" High (20 cubic feet). 3" K23 brick. Direct power connection. Three thermocouples. No charge for 3-phase versions.  C-MET-us is listed in the USA & Canada. Cone 10 all voltages.

SPECIFICATIONS

X3236 Specification Sheet

Large (19.4 cubic feet)

Genesis Multi-Zone Touchscreen Control

Cone 10, 2350F, 1290C

ELECTRIC SPECS & REQUIREMENTS

X3236-240v-1ph

Watts: 24,052

Volts: 240

Phase: Single Phase

Fuse Size: 150 Amp

Additional Information

Amps: 100.2

Wire Connection: Direct Wire Connection (no cord included)

Wire Gauge (75 deg C) for Connection: 3/0 Ga

Branch Fusing: Branch Fused

Element Wiring: Parallel

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-ETL-us listed to UL499 in the USA and CSA C22.2#221:2020 in Canada

X3236-240v-3ph

Watts: 24,052

Volts: 240

Phase: Three Phase (Delta)

Fuse Size: 90 Amp

Additional Information

Amps: 66.3

Wire Connection: Direct Wire Connection (no cord included)

Wire Gauge (75 deg C) for Connection: 2 Ga

Branch Fusing: Branch Fused

Element Wiring: Parallel

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-ETL-us listed to UL499 in the USA and CSA C22.2#221:2020 in Canada

X3236-208v-1ph

Watts: 24,052

Volts: 240

Phase: Single Phase

Fuse Size: 150 Amp

Additional Information

Amps: 115.6

Wire Connection: Direct Wire Connection (no cord included)

Wire Gauge (75 deg C) for Connection: 1/0 Ga

Branch Fusing: Branch Fused

Element Wiring: Parallel

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-ETL-us listed to UL499 in the USA and CSA C22.2#221:2020 in Canada

X3236-208v-3ph

Watts: 24,052

Volts: 208

Phase: Three Phase (Delta)

Fuse Size: 100 Amp

Additional Information

Amps: 76.5

Wire Connection: Direct Wire Connection (no cord included)

Wire Gauge (75 deg C) for Connection: 1 Ga

Branch Fusing: Branch Fused

Element Wiring: Parallel

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-ETL-us listed to UL499 in the USA and CSA C22.2#221:2020 in Canada

ACCESSORIES

Vent-Sure Downdraft Kiln Vent System

View image

A Critical component in the longevity of your kiln. The Vent-Sure automatic kiln vent helps prevent corrosion on the inside and outside of your kiln.

Price:

X3236 Furniture Kit

View Image

Eight 28" X 14" Rectangular Shelves (3/4" thick), Twelve Each 1/2", 1", 2", 4", 6", and 8" Square Posts, and One Pair Heat Resistant Gloves

Price: $

SHIPPING

Kiln: Skid #1: 48in L x 48in W x 56in H | Skid #2: 48in L x 40in W x 84in H ( Skid #1: 122cm L x 122cm W x 142cm H | Skid #2: 122cm L x 102cm W x 213cm H )

Ship Weight: 1120 lbs (508 kg)

Kiln with Furniture Kit: Skid #1: 48in L x 48in W x 56in H | Skid #2: 48in L x 40in W x 84in H ( Skid #1: 122cm L x 122cm W x 142cm H | Skid #2: 122cm L x 102cm W x 213cm H )

Ship Weight: 1295 lbs (587 kg)

Kiln with Vent: Skid #1: 48in L x 48in W x 63in H | Skid #2: 48in L x 40in W x 84in H ( Skid #1: 122cm L x 122cm W x 160cm H | Skid #2: 122cm L x 102cm W x 213cm H )

Ship Weight: 1135 lbs (515 kg)

Kiln with Vent and Furniture Kit: Skid #1: 48in L x 48in W x 67in H | Skid #2: 48in L x 40in W x 84in H ( Skid #1: 122cm L x 122cm W x 170cm H | Skid #2: 122cm L x 102cm W x 213cm H )

Ship Weight: 1310 lbs (594 kg)

X3236 Electric Kiln

$12,810.00 $14,270.00
Shipping calculated at checkout.

Model X3236-D Square Automatic DaVinci Kiln with a Multi-Program Three-Zoned Genesis Touchscreen control. Floor-standing control panel. Sectional and modular construction allows future expansion aided by the unique adjustable spring-loaded counterbalanced welded and powder-coated hinge system. The stand is made of formed galvannealed steel. Sides are made of specially machined arched bricks for strength. Kiln comes with hard ceramic element holders, thermocouple protection tubes, and solid peephole plugs. 30-1/2" Wide x 30-1/2" Deep x 36" High (20 cubic feet). 3" K23 brick. Direct power connection. Three thermocouples. No charge for 3-phase versions.  C-MET-us is listed in the USA & Canada. Cone 10 all voltages.
