DESCRIPTION

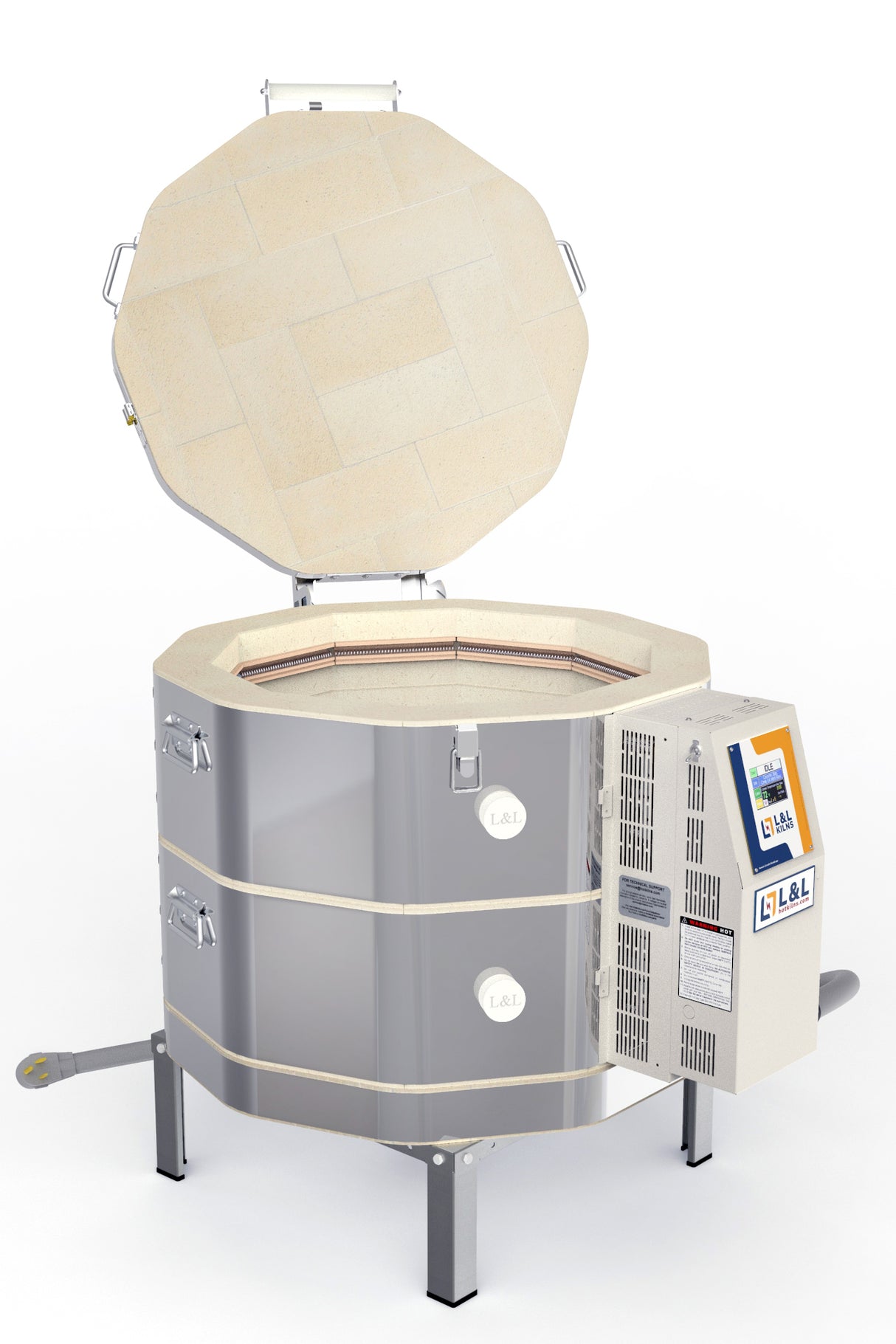

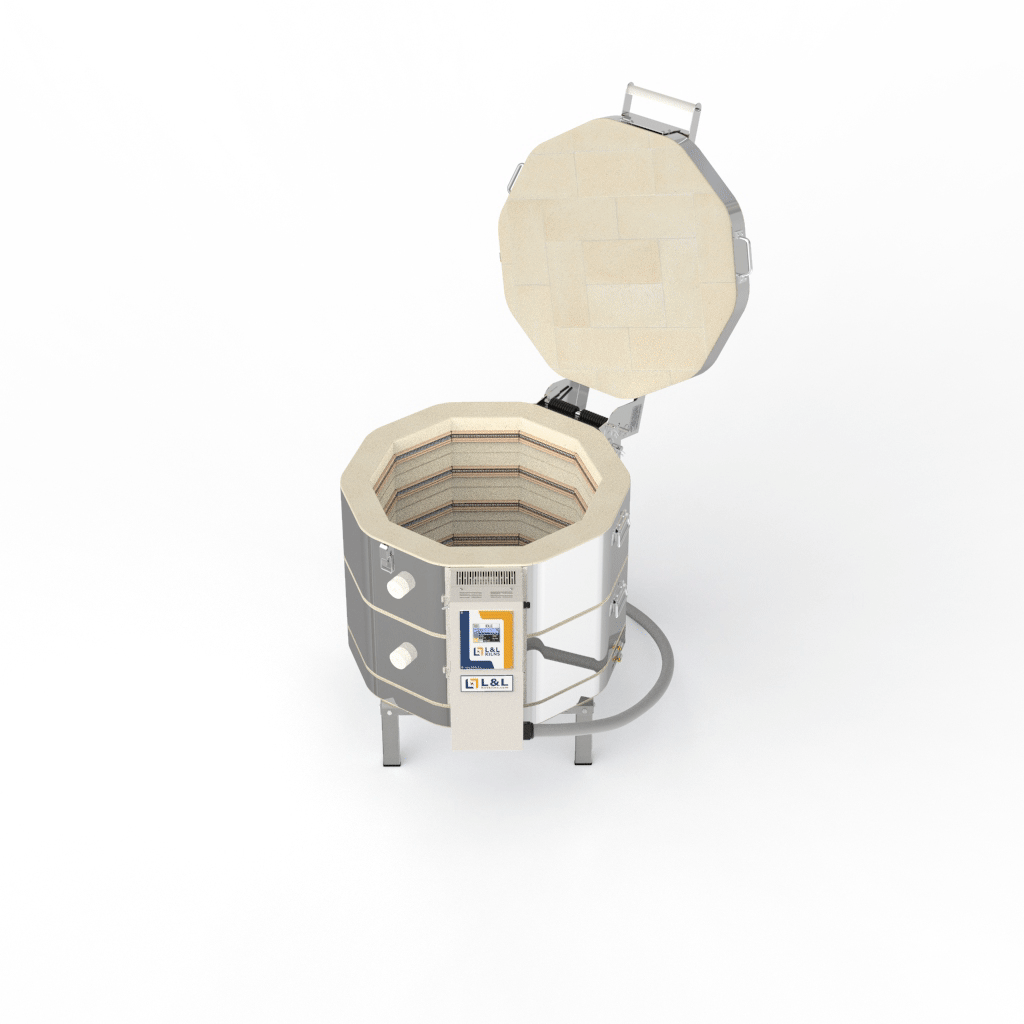

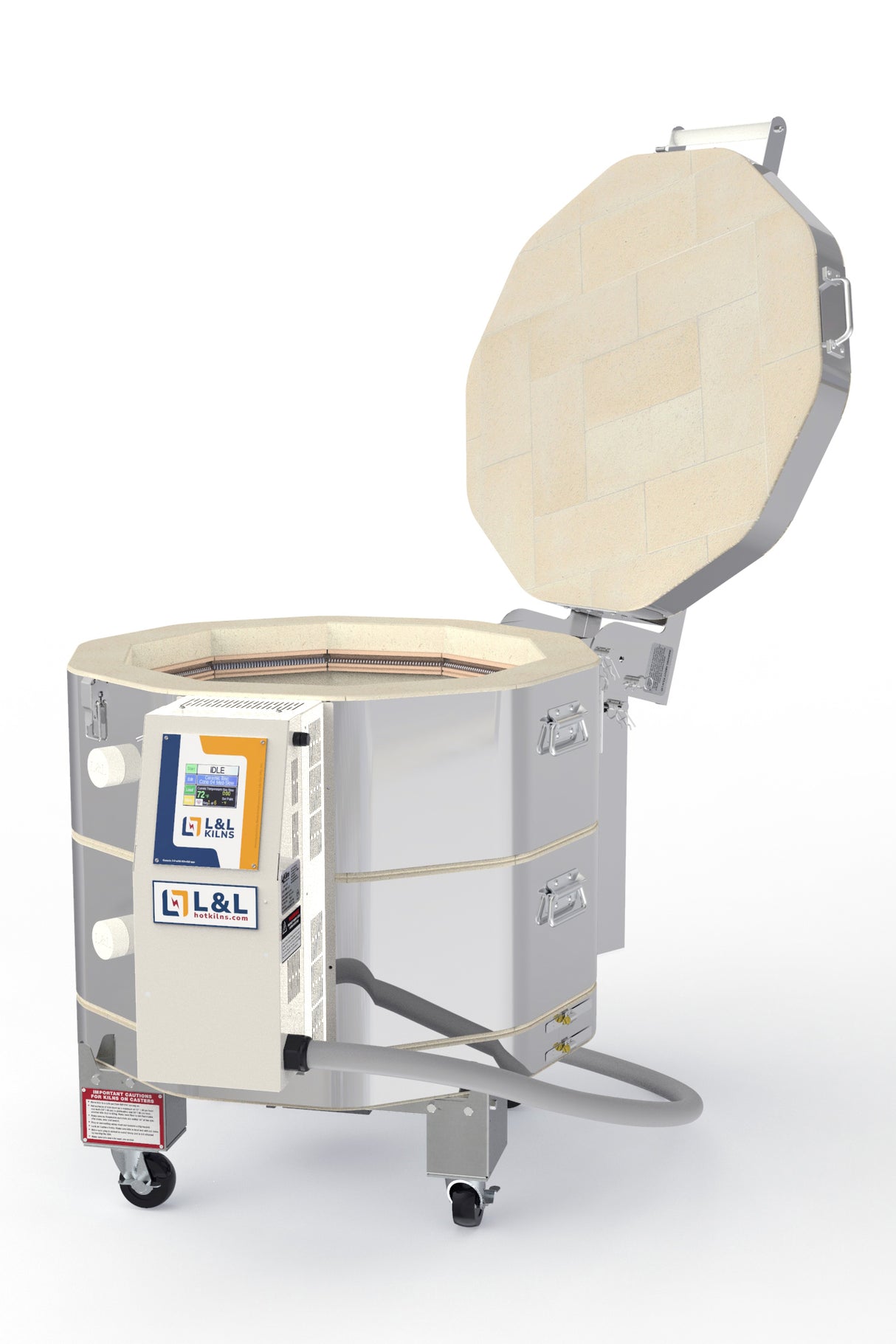

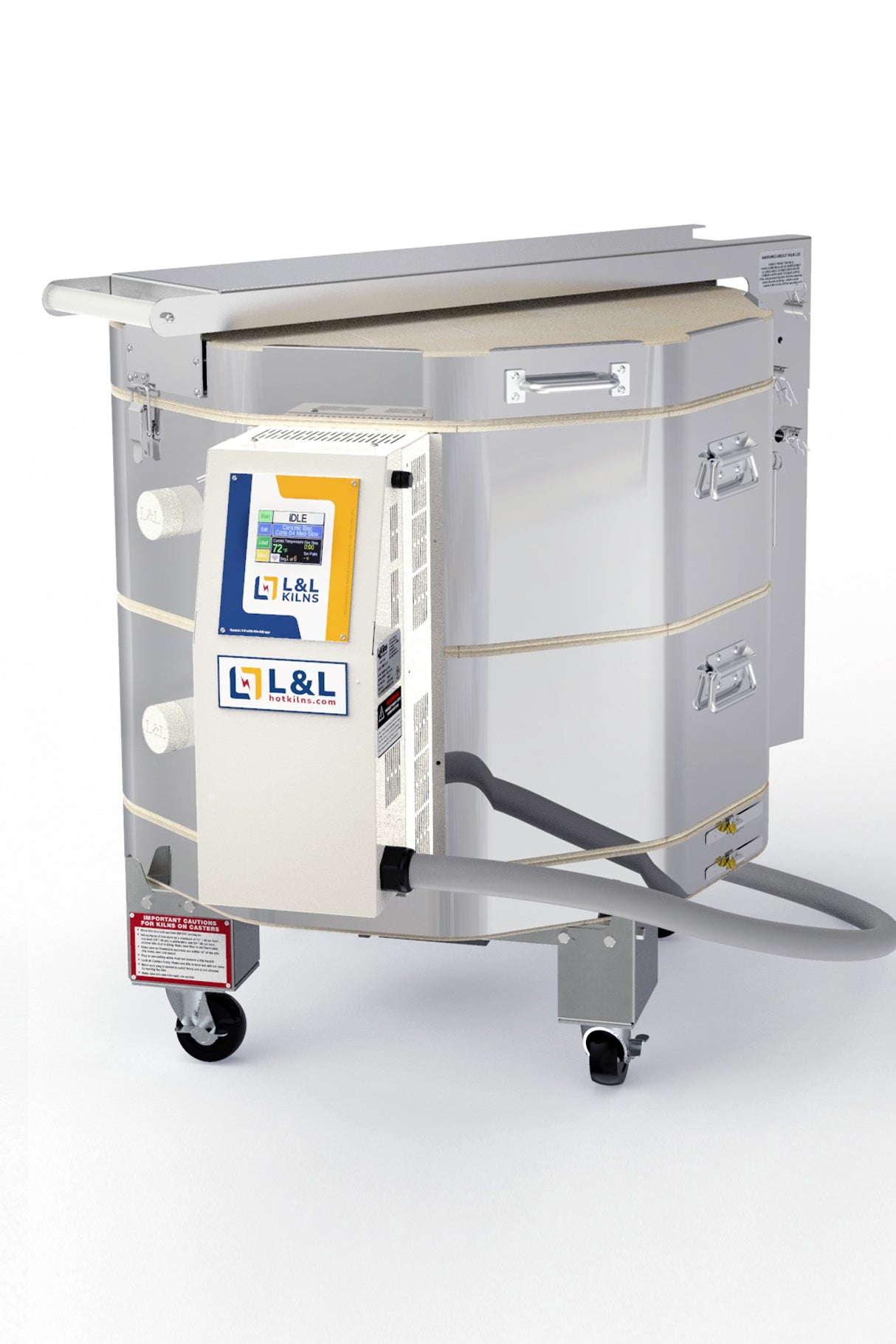

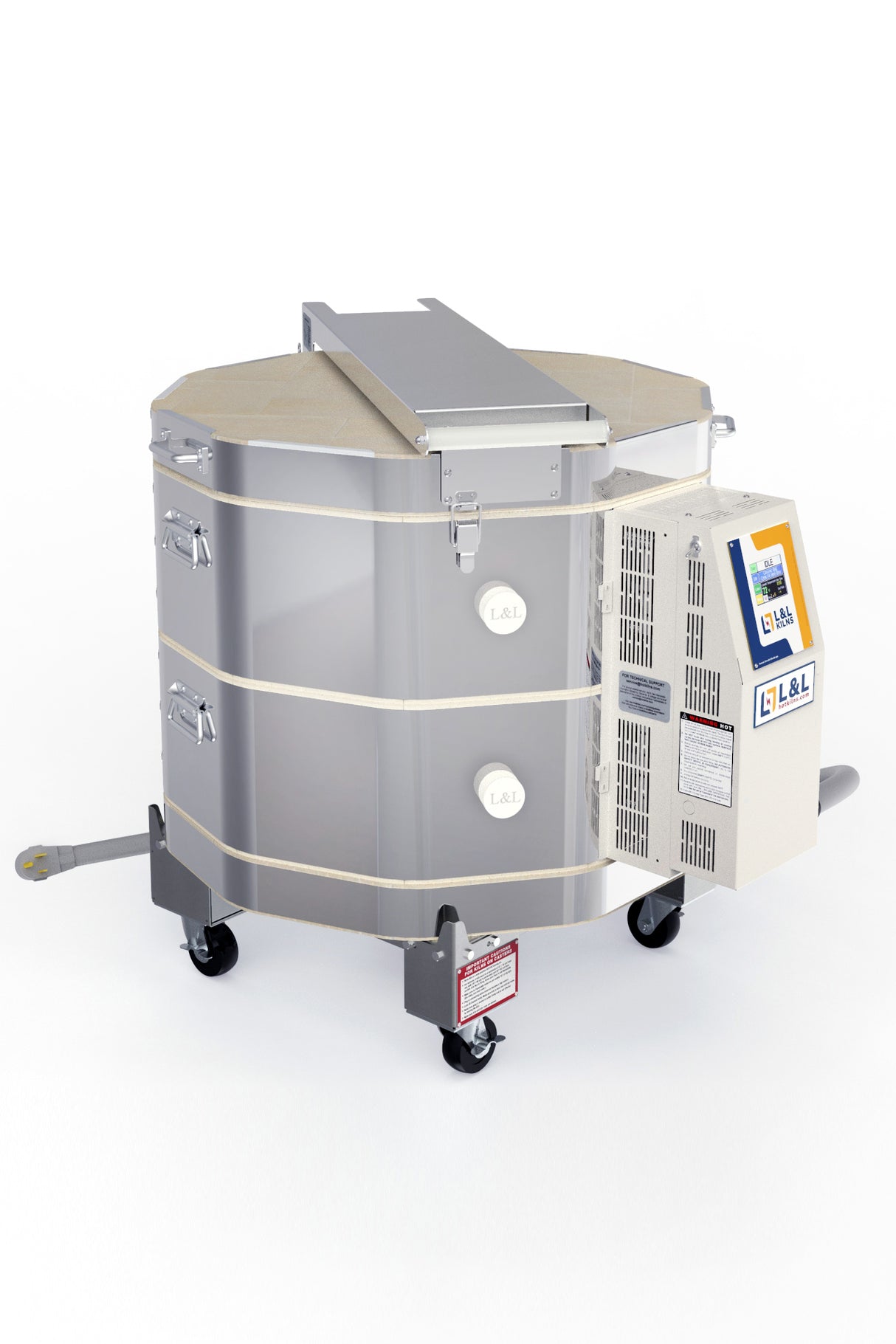

Model e23S-3 Easy-Fire Automatic Kiln with Multi-Program Two-Zoned Genesis Touchscreen control mounted in an easy-open, cool-firing, piggyback control panel that is angled for easy viewing of control. Kiln comes with hard ceramic element holders, protected thermocouples, a strong solid-top stand, an easy-lift spring hinge, and solid peephole plugs. 22-3/8" diameter by 18" high (4.4 cubic feet). 3" K23 brick. NEMA 6-50 single phase or 15-50 three-phase 6-foot power cord included. There are two thermocouples. No charge for 3-phase versions. C-MET-us listed in the USA & Canada. Cone 10 for all voltages.

SPECIFICATIONS

e23S-3 Specification Sheet

Medium (4.4 cubic feet)

Genesis Multi-Zone Touchscreen Control

Cone 10, 2350F

ELECTRIC SPECS & REQUIREMENTS

e23S-3-240V-1PH

Watts: 9,460

Volts: 240

Phase: Single Phase

Fuse Size: 50 Amp

Additional Information

Amps: 39.4

Wire Connection: NEMA 6-50 1 Phase Plug with six foot cord. Neutral is not used. (Kiln may be direct wired without affecting the MET listing)

Wire Gauge for Connection: 6 Ga

Branch Fusing: Not Branch Fused

Element Wiring: Parallel

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-MET-us listed to UL499 Standards in the US and Canada

e23S-3-240V-3PH

Watts: 9,460

Volts: 240

Phase: Three Phase (Delta)

Fuse Size: 50 Amp

Additional Information

Amps: 34.1

Wire Connection: NEMA 15-50 3 Phase Plug with six foot cord. Neutral is not used. (Kiln may be direct wired without affecting the MET listing)

Wire Gauge for Connection: 6 Ga

Branch Fusing: Not Branch Fused

Element Wiring: Parallel

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-MET-us listed to UL499 Standards in the US and Canada

e23S-3-208V-1PH

Watts: 8,320

Volts: 208

Phase: Single Phase

Fuse Size: 50 Amp

Additional Information

Amps: 40

Wire Connection: NEMA 6-50 1 Phase Plug with six foot cord. Neutral is not used. (Kiln may be direct wired without affecting the MET listing)

Wire Gauge for Connection: 6 Ga

Branch Fusing: Not Branch Fused

Element Wiring: Parallel

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-MET-us listed to UL499 Standards in the US and Canada

e23S-3-208V-3PH

Watts: 8,320

Volts: 208

Phase: Three Phase (Delta)

Fuse Size: 50 Amp

Additional Information

Amps: 34.6

Wire Connection: NEMA 15-50 3 Phase Plug with six foot cord. Neutral is not used. (Kiln may be direct wired without affecting the MET listing)

Wire Gauge for Connection: 6 Ga

Branch Fusing: Not Branch Fused

Element Wiring: Parallel

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-MET-us listed to UL499 Standards in the US and Canada

ACCESSORIES

Vent-Sure Downdraft Kiln Vent System

View Image

A Critical component in the longevity of your kiln. The Vent-Sure automatic kiln vent helps prevent corrosion on the inside and outside of your kiln.

Price: $

e23S-3 Furniture Kit

View Image

Includes: Six 20" Half Round Shelves (3/4" thick), Six each of 1/2", 1", 2", 4", 6", & 8" high 1-1/2" Square Ceramic Posts, and One Pair Heat Resistant Gloves

Price: $

SHIPPING

Kiln: 48in L x 40in W x 41in H ( 122cm L x 102cm W x 104cm H )

Ship Weight: 320 lbs (145 kg)

Kiln with Furniture Kit: 48in L x 40in W x 41in H ( 122cm L x 102cm W x 104cm H )

Ship Weight: 380 lbs (172 kg)

Kiln with Vent: 48in L x 40in W x 47in H ( 122cm L x 102cm W x 119cm H )

Ship Weight: 335 lbs (152 kg)

Kiln with Vent and Furniture Kit: 48in L x 40in W x 52in H ( 122cm L x 102cm W x 132cm H )

Ship Weight: 395 lbs (179 kg)

Packaging: Skidded Carton with Foam-in-Place packaging

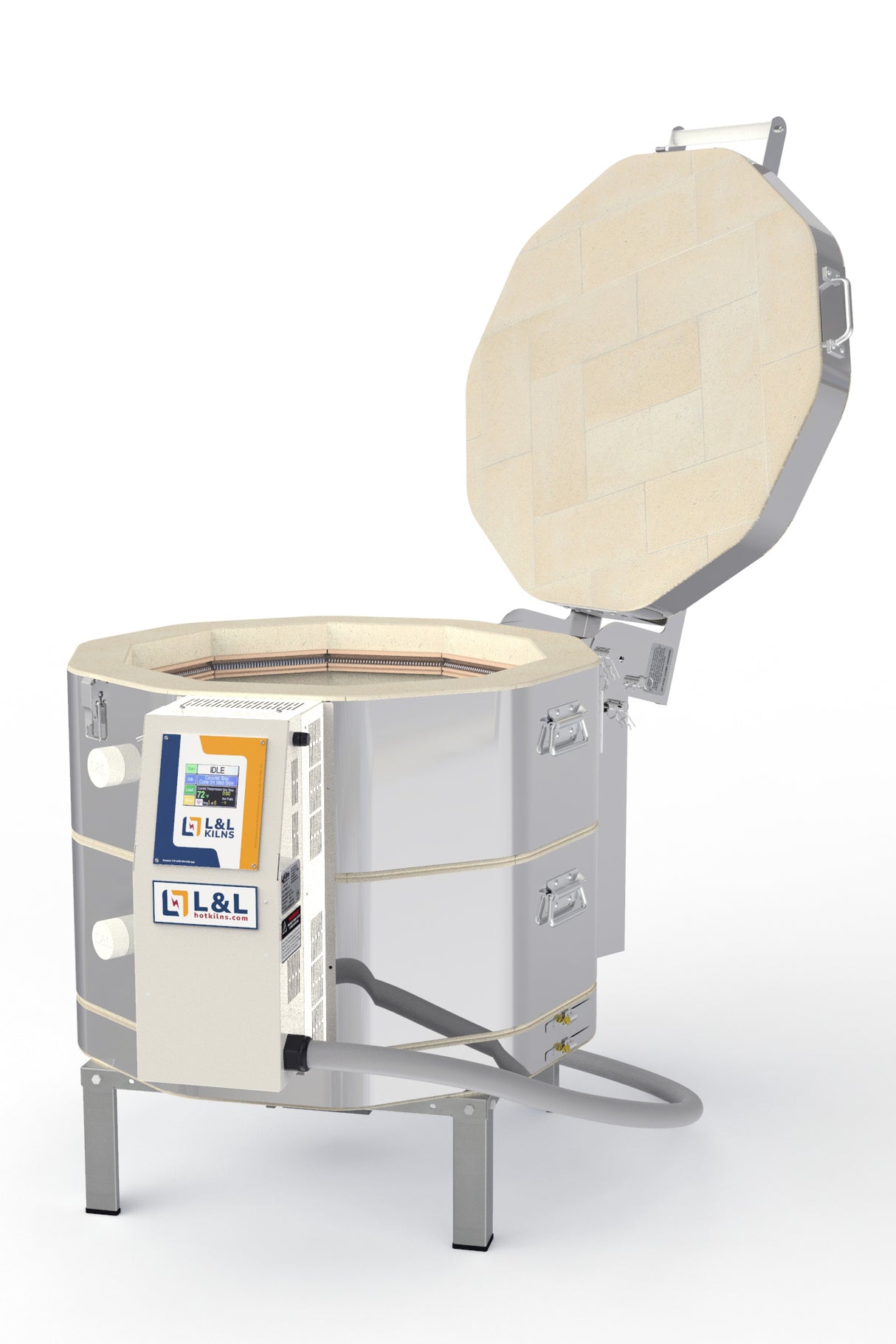

e23S-3 Pottery Kiln

$3,550.00 $4,250.00
Shipping calculated at checkout.

Model e23S-3 Easy-Fire Automatic Kiln with Multi-Program Two-Zoned Genesis Touchscreen control mounted in an easy-open, cool-firing, piggyback control panel that is angled for easy viewing of control. Kiln comes with hard ceramic element holders, protected thermocouples, a strong solid-top stand, an easy-lift spring hinge, and solid peephole plugs. 22-3/8" diameter by 18" high (4.4 cubic feet). 3" K23 brick. NEMA 6-50 single phase or 15-50 three-phase 6-foot power cord included. There are two thermocouples. No charge for 3-phase versions. C-MET-us listed in the USA & Canada. Cone 10 for all voltages.

DESCRIPTION

Model e23S-3 Easy-Fire Automatic Kiln with Multi-Program Two-Zoned Genesis Touchscreen control mounted in an easy-open, cool-firing, piggyback control panel that is angled for easy viewing of control. Kiln comes with hard ceramic element holders, protected thermocouples, a strong solid-top stand, an easy-lift spring hinge, and solid peephole plugs. 22-3/8" diameter by 18" high (4.4 cubic feet). 3" K23 brick. NEMA 6-50 single phase or 15-50 three-phase 6-foot power cord included. There are two thermocouples. No charge for 3-phase versions. C-MET-us listed in the USA & Canada. Cone 10 for all voltages.

SPECIFICATIONS

e23S-3 Specification Sheet

Medium (4.4 cubic feet)

Genesis Multi-Zone Touchscreen Control

Cone 10, 2350F

ELECTRIC SPECS & REQUIREMENTS

e23S-3-240V-1PH

Watts: 9,460

Volts: 240

Phase: Single Phase

Fuse Size: 50 Amp

Additional Information

Amps: 39.4

Wire Connection: NEMA 6-50 1 Phase Plug with six foot cord. Neutral is not used. (Kiln may be direct wired without affecting the MET listing)

Wire Gauge for Connection: 6 Ga

Branch Fusing: Not Branch Fused

Element Wiring: Parallel

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-MET-us listed to UL499 Standards in the US and Canada

e23S-3-240V-3PH

Watts: 9,460

Volts: 240

Phase: Three Phase (Delta)

Fuse Size: 50 Amp

Additional Information

Amps: 34.1

Wire Connection: NEMA 15-50 3 Phase Plug with six foot cord. Neutral is not used. (Kiln may be direct wired without affecting the MET listing)

Wire Gauge for Connection: 6 Ga

Branch Fusing: Not Branch Fused

Element Wiring: Parallel

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-MET-us listed to UL499 Standards in the US and Canada

e23S-3-208V-1PH

Watts: 8,320

Volts: 208

Phase: Single Phase

Fuse Size: 50 Amp

Additional Information

Amps: 40

Wire Connection: NEMA 6-50 1 Phase Plug with six foot cord. Neutral is not used. (Kiln may be direct wired without affecting the MET listing)

Wire Gauge for Connection: 6 Ga

Branch Fusing: Not Branch Fused

Element Wiring: Parallel

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-MET-us listed to UL499 Standards in the US and Canada

e23S-3-208V-3PH

Watts: 8,320

Volts: 208

Phase: Three Phase (Delta)

Fuse Size: 50 Amp

Additional Information

Amps: 34.6

Wire Connection: NEMA 15-50 3 Phase Plug with six foot cord. Neutral is not used. (Kiln may be direct wired without affecting the MET listing)

Wire Gauge for Connection: 6 Ga

Branch Fusing: Not Branch Fused

Element Wiring: Parallel

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-MET-us listed to UL499 Standards in the US and Canada

ACCESSORIES

Vent-Sure Downdraft Kiln Vent System

View Image

A Critical component in the longevity of your kiln. The Vent-Sure automatic kiln vent helps prevent corrosion on the inside and outside of your kiln.

Price: $

e23S-3 Furniture Kit

View Image

Includes: Six 20" Half Round Shelves (3/4" thick), Six each of 1/2", 1", 2", 4", 6", & 8" high 1-1/2" Square Ceramic Posts, and One Pair Heat Resistant Gloves

Price: $

SHIPPING

Kiln: 48in L x 40in W x 41in H ( 122cm L x 102cm W x 104cm H )

Ship Weight: 320 lbs (145 kg)

Kiln with Furniture Kit: 48in L x 40in W x 41in H ( 122cm L x 102cm W x 104cm H )

Ship Weight: 380 lbs (172 kg)

Kiln with Vent: 48in L x 40in W x 47in H ( 122cm L x 102cm W x 119cm H )

Ship Weight: 335 lbs (152 kg)

Kiln with Vent and Furniture Kit: 48in L x 40in W x 52in H ( 122cm L x 102cm W x 132cm H )

Ship Weight: 395 lbs (179 kg)

Packaging: Skidded Carton with Foam-in-Place packaging
