DESCRIPTION

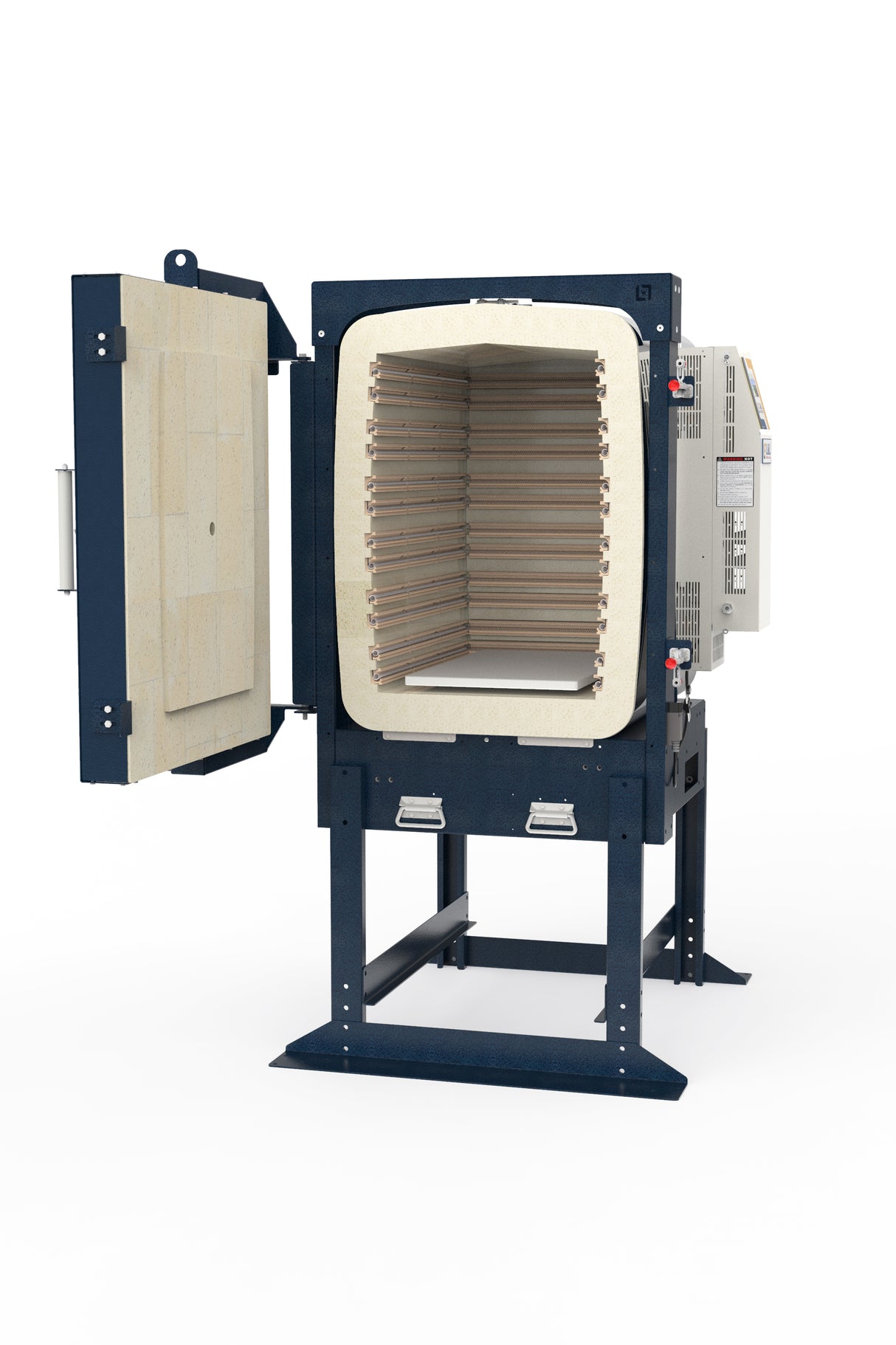

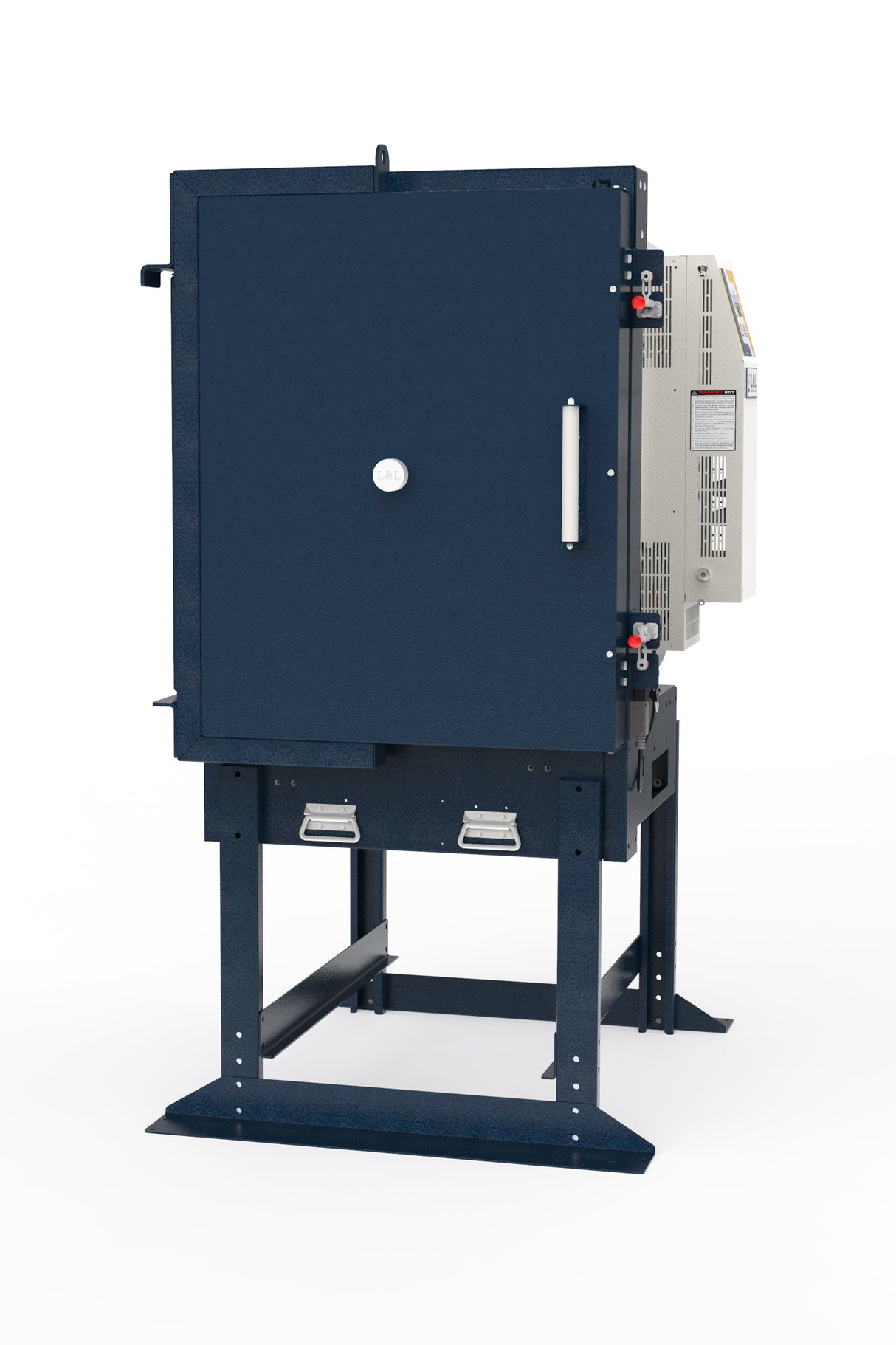

Model eFL1626 Front-Loading Kiln with Multi-Program Three-Zoned Genesis Touchscreen control, mounted in an easy-open, cool-firing, piggy-back control panel that is angled for easy viewing of control. Kiln comes with hard ceramic element holders, protected thermocouples, a stand, and solid peephole plugs.  The sides and top are arched for super strength. The base, door, and door frame are formed from precision sheet metal to be lightweight and strong. These kilns ship by common carrier, and are inexpensive to buy, install, and maintain. 17"W by 26"H by 26" D (6.6 cubic feet). 3" K23 brick. All models are rated to Cone 10. *A special model eFL1626-208-X is rated at Cone 5 but has 48.0 amps and a 60 amp fuse. Plugs on US Models only: 6-50P on single phase and 15-50P on three phase for all eFL1626 models except the standard eFL1626-208 1 Phase, which needs to be direct wired. Three thermocouples. No charge for 3-phase versions. C-MET-us is listed to UL499 in the USA & Canada. Note: Casters are optional.

Special Order Kiln-See This Checklist Before Ordering

SPECIFICATIONS

eFL1626 Specification Sheet

Medium (6.6 cubic feet)

Genesis Multi-Zone Touchscreen Control

Cone 10, 2350F, 1290C

ELECTRIC SPECS & REQUIREMENTS

eFL1626-240V-1PH

Watts: 11,520

Volts: 240

Phase: Single Phase

Fuse Size: 60 Amp

Additional Information

Amps: 48

Wire Connection: NEMA 6-50 1 Phase Plug with six foot cord. Neutral is not used. (Kiln may be direct wired without affecting the MET listing)

Wire Gauge for Connection: 6 Ga

Branch Fusing: Not Branch Fused

Element Wiring: Parallel

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-MET-us listed to UL499 Standards in the US and Canada

eFL1626-240V-3PH

Watts: 12,500

Volts: 240

Phase: Three Phase (Delta)

Fuse Size: 40 Amp

Additional Information

Amps: 30.1

Wire Connection: NEMA 15-50 3 Phase Plug with six foot cord. Neutral is not used. (Kiln may be direct wired without affecting the MET listing)

Wire Gauge for Connection: 8 Ga

Branch Fusing: Not Branch Fused

Element Wiring: Parallel

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-MET-us listed to UL499 Standards in the US and Canada

eFL1626-208V-1PH

Watts: 11,649

Volts: 208

Phase: Single Phase

Fuse Size: 70 Amp

Additional Information

Amps: 56

Wire Connection: Direct Wire Connection (no cord included)

Wire Gauge for Connection: 4 Ga

Branch Fusing: Not Branch Fused

Element Wiring: Parallel

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-MET-us listed to UL499 Standards in the US and Canada

eFL1626-208V-3PH

Watts: 12,500

Volts: 208

Phase: Three Phase (Delta)

Fuse Size: 50 Amp

Additional Information

Amps: 34.7

Wire Connection: NEMA 15-50 3 Phase Plug with six foot cord. Neutral is not used. (Kiln may be direct wired without affecting the MET listing)

Wire Gauge for Connection: 6 Ga

Branch Fusing: Not Branch Fused

Element Wiring: Parallel

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-MET-us listed to UL499 Standards in the US and Canada

ACCESSORIES

Vent-Sure Downdraft Kiln Vent System

View image

A Critical component in the longevity of your kiln. The Vent-Sure automatic kiln vent helps prevent corrosion on the inside and outside of your kiln.

Price: $

eFL1626 Furniture Kit

View Image

Includes: Three 14" x 24" Rectangular Shelves (3/4" thick), Six Each 1/2", 1", 2", 4", 6", and 8" Square Posts, and One Pair Heat Resistant Gloves

Price: $

SHIPPING

Kiln: 48in L x 48in W x 50in H ( 122cm L x 122cm W x 127cm H )
Ship Weight: 635 lbs (288 kg)
Kiln with Furniture Kit: 48in L x 48in W x 50in H ( 122cm L x 122cm W x 127cm H )
Ship Weight: 700 lbs (318 kg)
Kiln with Vent: 48in L x 48in W x 50in H ( 122cm L x 122cm W x 127cm H )
Ship Weight: 650 lbs (295 kg)
Kiln with Vent and Furniture Kit: 48in L x 48in W x 50in H ( 122cm L x 122cm W x 127cm H )
Ship Weight: 715 lbs (324 kg)
Packaging: Engineered Pallet for kiln unloading with high lift pallet jack with Foam-in-Place packaging
