DESCRIPTION

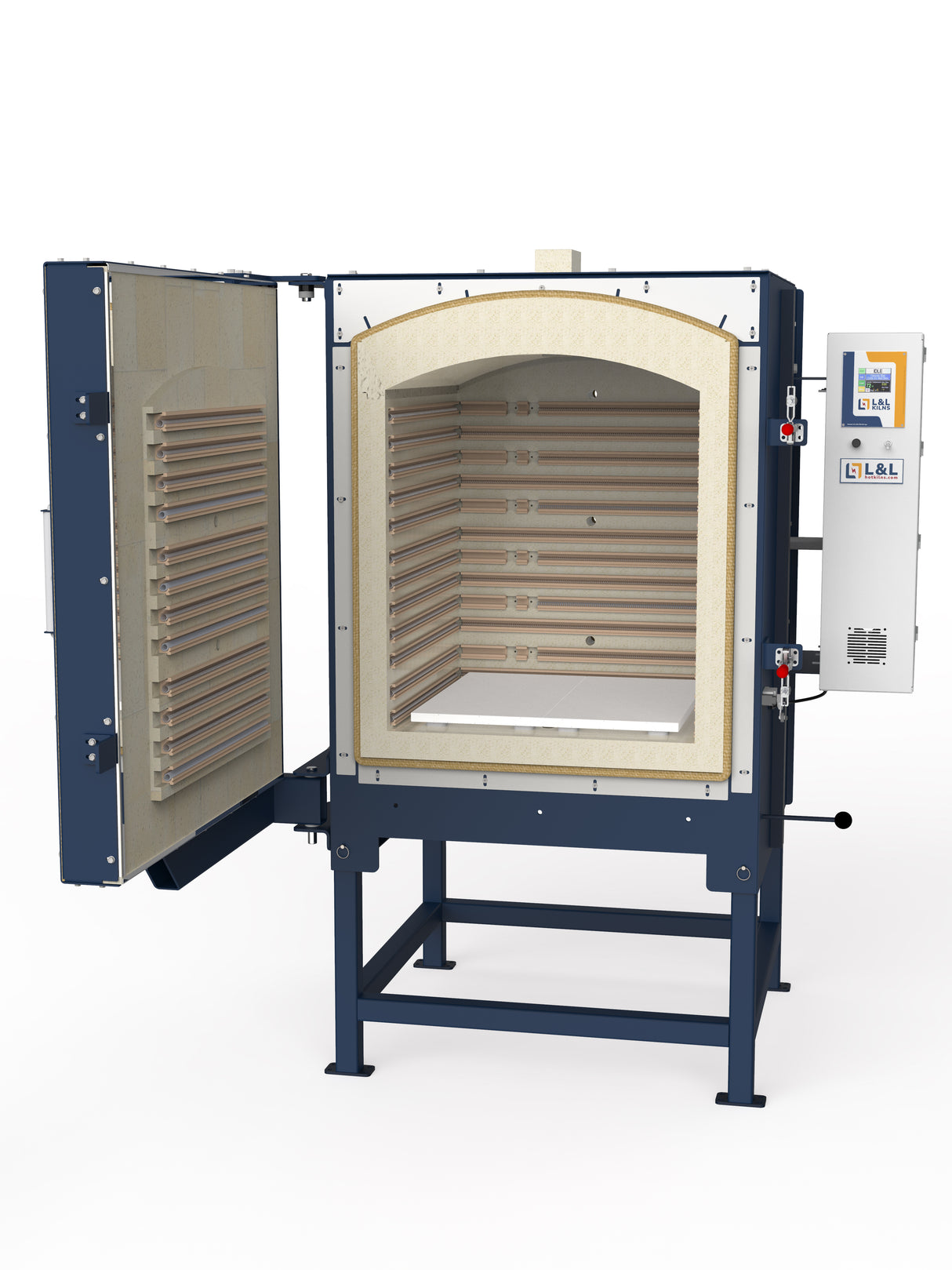

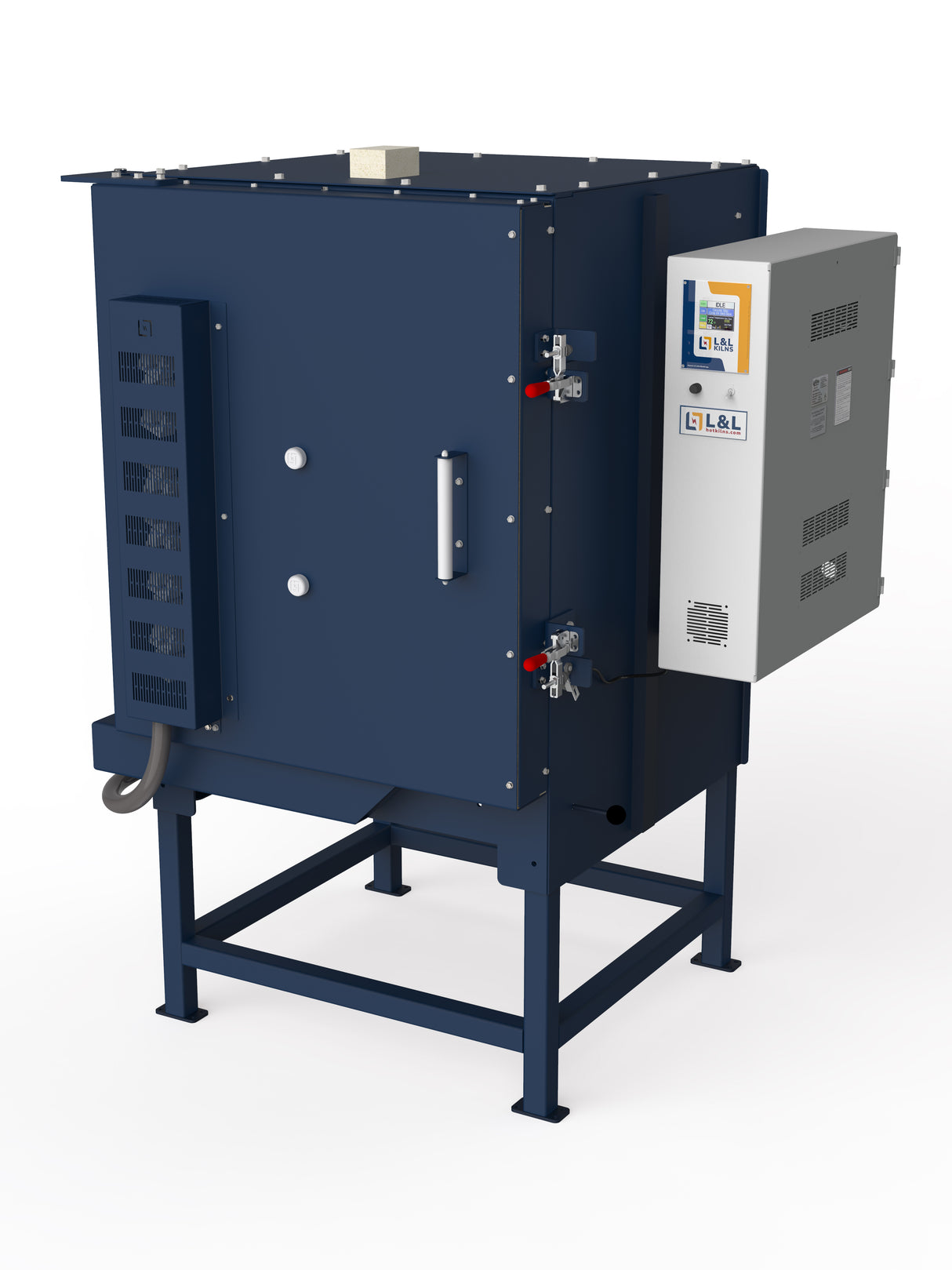

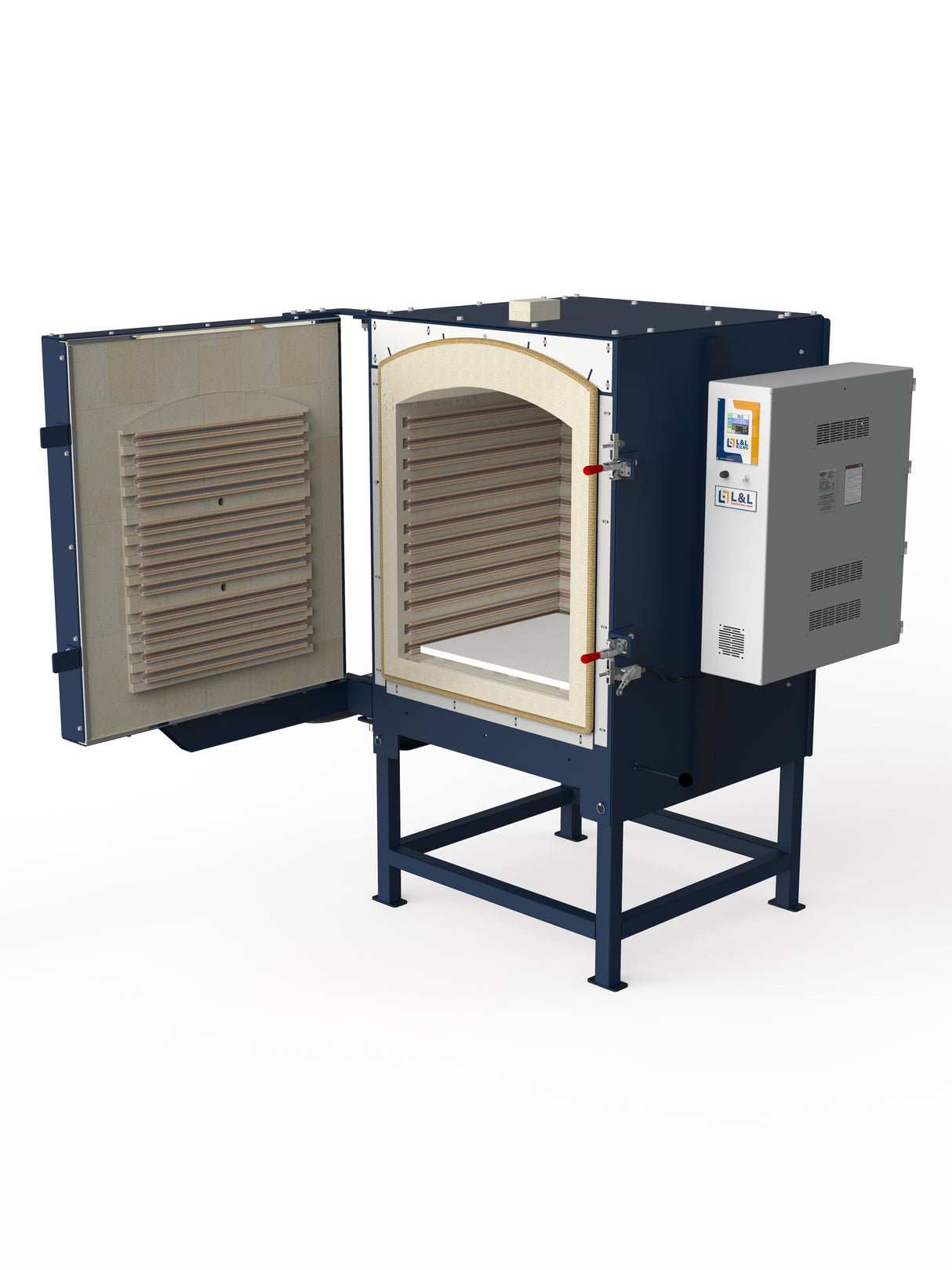

Model EL2427 Easy-Load Front-Loading kiln with Multi-Program Three-Zoned Genesis Touchscreen control, hard ceramic element holders, protected thermocouples, separate attached stand, cool-firing separate side-mounted panel, multi-layered insulation (3" K23 firebrick with 2" back up mineral wool), full arch 4-1/2" thick firebrick roof made of harder K25 firebrick, side, back and door elements, door gasket, heavy gauge welded case that is powder-coated hammertone blue for corrosion resistance, manual vent system with roof plug and bottom inlet holes with sliding damper. 25" Wide x 26" Deep x 27" High (9 cubic feet). Direct power connection. There are three thermocouples. No charge for 3-phase versions. MET-us is listed in the USA. Cone 10 for all voltages.

Special Order Kiln-See These Checklists Before Ordering:

Easy Load Kilns Pre-Shipping Quote Form

Easy Load Kilns Pre-Order Checklist



SPECIFICATIONS

EL2427 Specification Sheet

Large (9 cubic feet)

Genesis Multi-Zone Touchscreen Control

Cone 10, 2350F, 1290C

ELECTRIC SPECS & REQUIREMENTS

EL2427-240V-1PH

Watts: 16,500

Volts: 240

Phase: Single Phase

Fuse Size: 90 Amp

Additional Information

Amps: 68.8

Wire Connection: Direct Wire Connection (no cord included)

Wire Gauge (75 deg C) for Connection: 3 Ga

Branch Fusing: Branch Fused

Element Wiring:

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-ETL-us listed to UL499 in the USA and CSA C22.2#221:2020 in Canada

EL2427-240V-3PH

Watts: 16,500

Volts: 240

Phase: Three Phase (Delta)

Fuse Size: 50 Amp

Additional Information

Amps: 39.7

Wire Connection: Direct Wire Connection (no cord included)

Wire Gauge (75 deg C) for Connection: 8 Ga

Branch Fusing: Branch Fused

Element Wiring:

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-ETL-us listed to UL499 in the USA and CSA C22.2#221:2020 in Canada

EL2427-208V-1PH

Watts: 16,500

Volts: 208

Phase: Single Phase

Fuse Size: 100 Amp

Additional Information

Amps: 79.3

Wire Connection: Direct Wire Connection (no cord included)

Wire Gauge (75 deg C) for Connection: 10 Ga

Branch Fusing: Branch Fused

Element Wiring:

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-ETL-us listed to UL499 in the USA and CSA C22.2#221:2020 in Canada

EL2427-208V-3PH

Watts: 16,500

Volts: 208

Phase: Three Phase (Delta)

Fuse Size: 60 Amp

Additional Information

Amps: 45.8

Wire Connection: Direct Wire Connection (no cord included)

Wire Gauge (75 deg C) for Connection: 6 Ga

Branch Fusing: Branch Fused

Element Wiring:

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-ETL-us listed to UL499 in the USA and CSA C22.2#221:2020 in Canada

ACCESORIES

Vent-Sure Downdraft Kiln Vent System

View image

A Critical component in the longevity of your kiln. The Vent-Sure automatic kiln vent helps prevent corrosion on the inside and outside of your kiln.

Price: $

EL2427 Furniture Kit

View Image

Includes: Six 11" x 22" Rectangular Shelves (3/4" thick), Six Each 1/2", 1", 2", 4", 6", and 8" Square Posts, and One Pair Heat Resistant Gloves

Price: $

SHIPPING

Kiln: 61in L x 48in W x 80in H ( 155cm L x 122cm W x 203cm H )

Ship Weight: 1380 lbs (626 kg)

Kiln with Furniture Kit: 61in L x 48in W x 80in H ( 155cm L x 122cm W x 203cm H )

Ship Weight: 1465 lbs (665 kg)

Kiln with Vent: 61in L x 48in W x 80in H ( 155cm L x 122cm W x 203cm H )

Ship Weight: 1395 lbs (633 kg)

Kiln with Vent and Furniture Kit: 61in L x 48in W x 80in H ( 155cm L x 122cm W x 203cm H )

Ship Weight: 1480 lbs (671 kg)

Packaging:

See the Easy-Load Crating Charges and Export Options

EL2427 Easy-Load

$17,405.00
