DESCRIPTION

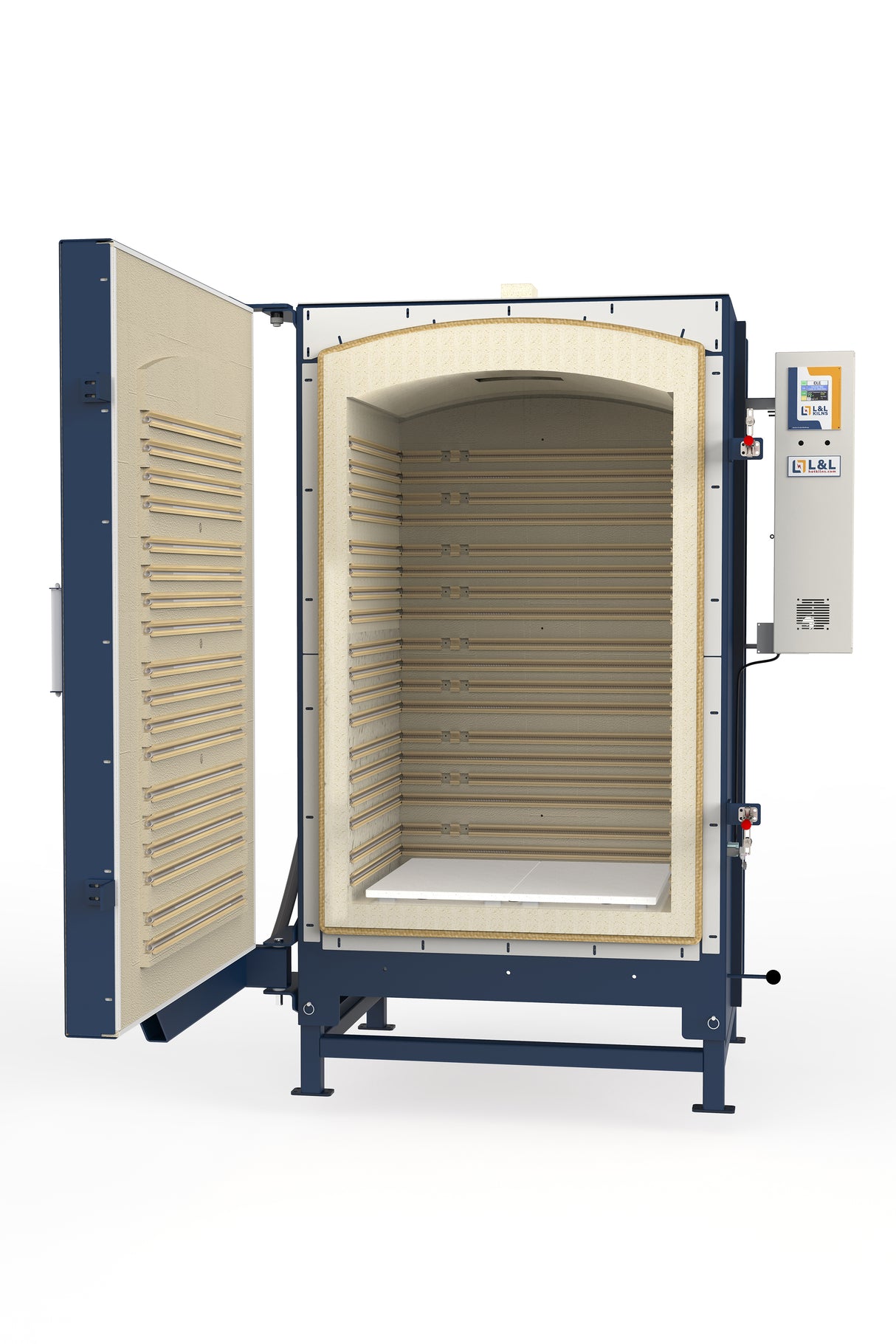

Model EL2848 Easy-Load Front-Loading kiln with Multi-Program Three-Zoned Genesis Touchscreen control, hard ceramic element holders, protected thermocouples, separate attached stand, cool-firing separate side-mounted panel, multi-layered insulation (3" K23 firebrick with 2" back up mineral wool), full arch 4-1/2" thick firebrick roof made of harder K25 firebrick, side, back and door elements, door gasket, heavy gauge welded case that is powder-coated hammertone blue for corrosion resistance, manual vent system with roof plug and bottom inlet holes with sliding damper. 31" Wide x 26" Deep x 49" High (20 cubic feet). Direct power connection. There are three thermocouples. No charge for 3-phase versions. MET-us listed in the USA. Cone 10 for all voltages.

Special Order Kiln-See These Checklists Before Ordering:

Easy Load Kilns Pre-Shipping Quote Form

Easy Load Kilns Pre-Order Checklist

SPECIFICATIONS

EL2848 Specification Sheet

Large (20 cubic feet)

Genesis Multi-Zone Touchscreen Control

Cone 10, 2350F, 1290C

ELECTRIC SPECS & REQUIREMENTS

EL2848-240V-1PH

Watts: 27,000

Volts: 240

Phase: Single Phase

Fuse Size: 150 Amp

Additional Information

Amps: 112.5

Wire Connection: Direct Wire Connection (no cord included)

Wire Gauge (75 deg C) for Connection: 1/0 Ga

Branch Fusing: Branch Fused

Element Wiring:

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-ETL-us listed to UL499 in the USA and CSA C22.2#221:2020 in Canada

EL2848-240V-3PH

Watts: 27,000

Volts: 240

Phase: Three Phase (Delta)

Fuse Size: 90 Amp

Additional Information

Amps: 65

Wire Connection: Direct Wire Connection (no cord included)

Wire Gauge (75 deg C) for Connection: 4 Ga

Branch Fusing: Branch Fused

Element Wiring:

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-ETL-us listed to UL499 in the USA and CSA C22.2#221:2020 in Canada

EL2848-208V-1PH

Watts: 27,000

Volts: 208

Phase: Single Phase

Fuse Size: 175 Amp

Additional Information

Amps: 129.8

Wire Connection: Direct Wire Connection (no cord included)

Wire Gauge (75 deg C) for Connection: 6 Ga

Branch Fusing: Branch Fused

Element Wiring:

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-ETL-us listed to UL499 in the USA and CSA C22.2#221:2020 in Canada

EL2848-208V-3PH

Watts: 27,000

Volts: 208

Phase: Three Phase (Delta)

Fuse Size: 100 Amp

Additional Information

Amps: 74.9

Wire Connection: Direct Wire Connection (no cord included)

Wire Gauge (75 deg C) for Connection: 3 Ga

Branch Fusing: Branch Fused

Element Wiring:

Max Temperature: Cone 10, 2350F, 1290C

Certifications

International: Made for all markets except EU

CE: Not CE certified

UL499: c-ETL-us listed to UL499 in the USA and CSA C22.2#221:2020 in Canada

ACCESORIES

Vent-Sure Downdraft Kiln Vent System

View image

A Critical component in the longevity of your kiln. The Vent-Sure automatic kiln vent helps prevent corrosion on the inside and outside of your kiln.

Price: $

EL2848 Furniture Kit

View Image

Includes: Twelve 14" x 24" Rectangular Shelves (3/4" thick), Twelve Each 1/2", 1", 2", 4", 6", and 8" Square Posts, and One Pair Heat Resistant Gloves

Price: $

SHIPPING

Kiln: 67in L x 51in W x 89in H ( 170cm L x 130cm W x 226cm H )

Ship Weight: 1895 lbs (860 kg)

Kiln with Furniture Kit: 67in L x 51in W x 89in H ( 170cm L x 130cm W x 226cm H )

Ship Weight: 2125 lbs (964 kg)

Kiln with Vent: 67in L x 51in W x 89in H ( 170cm L x 130cm W x 226cm H )

Ship Weight: 1910 lbs (866 kg)

Kiln with Vent and Furniture Kit: 67in L x 51in W x 89in H ( 170cm L x 130cm W x 226cm H )

Ship Weight: 2140 lbs (971 kg)

Packaging:

See the Easy-Load Crating Charges and Export Options

EL2848 Easy-Load

$32,450.00
